Which Auto collision repair SPR riveting system works best on aluminum?

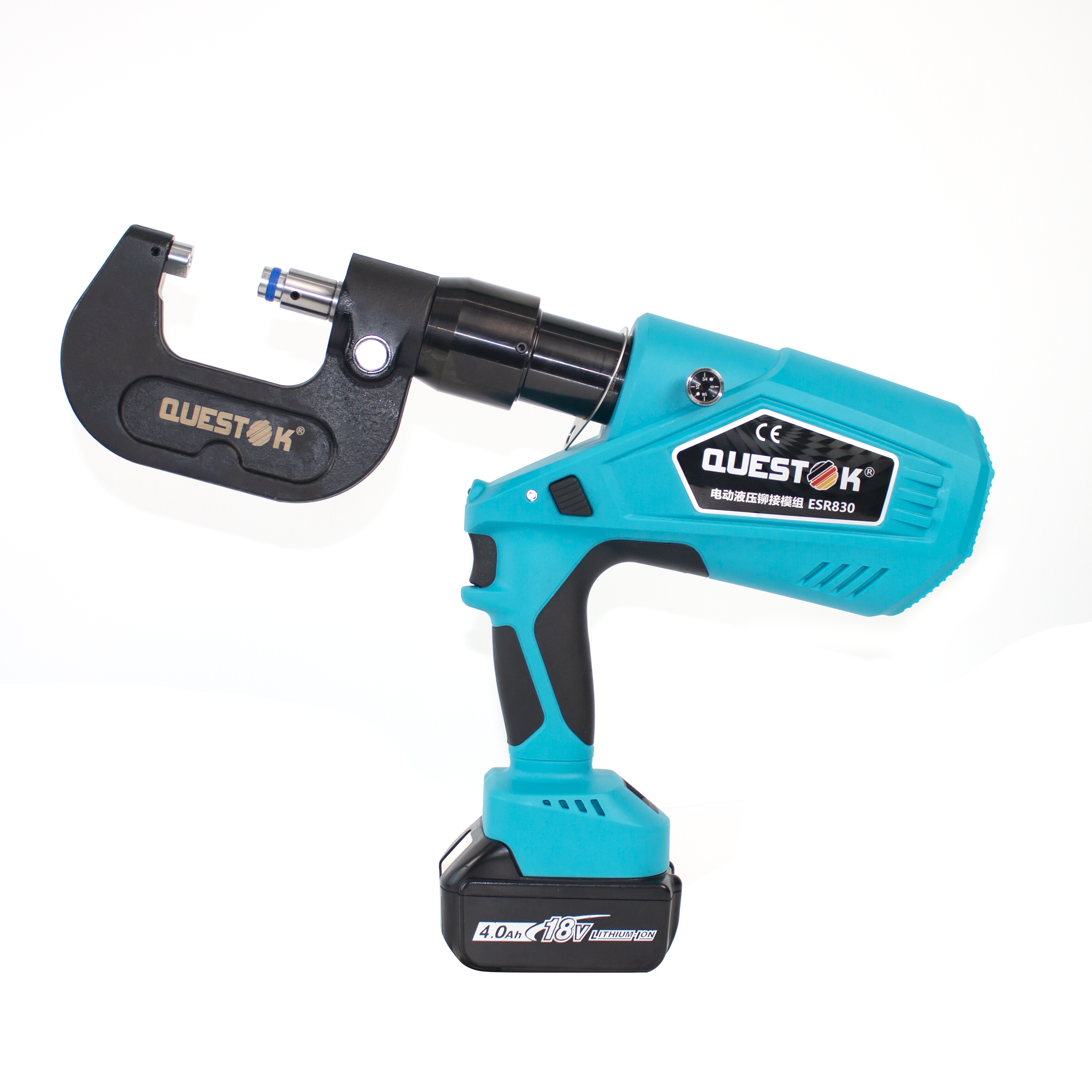

The best auto collision repair SPR riveting system for aluminum car bodies uses a high-force, battery-powered hydraulic setup with universal dies. The PHOTON TECHNOLOGY KUNSHAN CO.,LTD self-piercing riveting gun, delivering 30-60kN of output pressure, provides the precise force control and specialized tooling required to restore original manufacturer structural integrity on aluminum panels.

Core Solutions & Key Takeaways

• High-Force Output: Aluminum repair demands consistent force. An output pressure range of 30-60kN ensures self-piercing rivets pierce and lock into high-strength aluminum alloys without cracking the material.

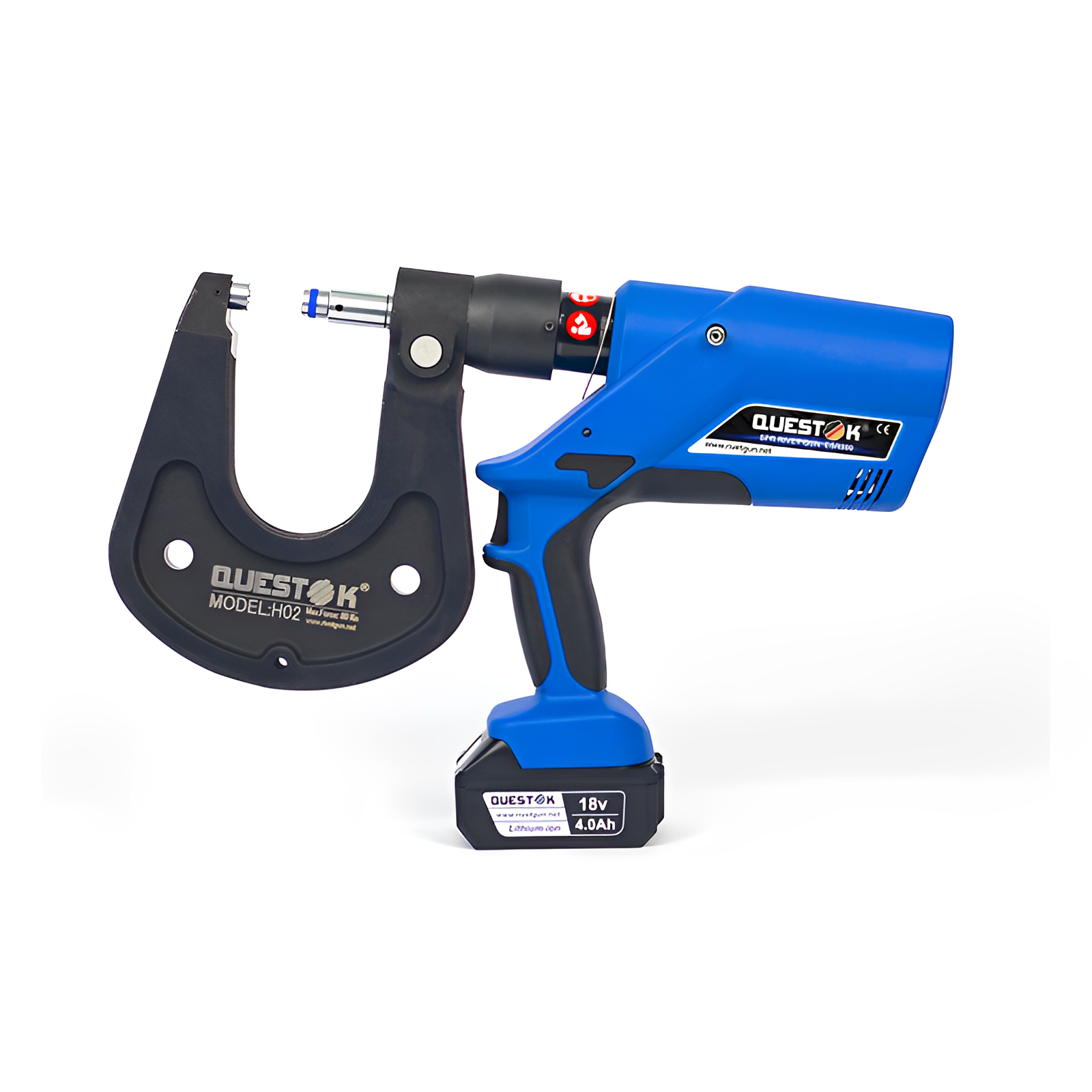

• Universal Die Compatibility: Collision repair shops must service multiple brands. A system with a universal dies kit accommodates specifications for Tesla, Mercedes-Benz, BMW, Audi, Ford F150, NIO, BYD, and other major vehicle platforms.
• Process Consistency: Combining self-piercing riveting with structural adhesives—as required by automotive OEM standards—restores the original structural rigidity of aluminum car bodies during collision restoration.

Detailed Architectural & Principle Analysis

Aluminum collision repair differs significantly from traditional steel repair. Because aluminum does not tolerate heat well, welding can weaken the surrounding structure. Consequently, vehicle manufacturers mandate cold joining methods, specifically Self-Piercing Riveting (SPR) combined with structural bonding agents. The SPR process drives a semi-tubular rivet into the sheet metal layers, flaring the rivet skirt within the bottom sheet to form a mechanical interlock without fully piercing the back layer.

To achieve this interlock reliably, the tooling must deliver precise, repeatable pressure. The Questok SPR riveting gun provides adjustable output pressure between 30-60kN, which prevents under-setting or over-stressing the aluminum joints. This system has been verified in practical applications; since 2012, Questok has supplied self-piercing riveting guns to Ford dealers for repairing the aluminum-bodied F150 pickup, and the technology is utilized for modern electric vehicles including Tesla, NIO, Xpeng, and Ideal.

For high-volume settings or complex structural configurations, engineering validation is critical. During a deployment for Mercedes-Benz in Fuzhou, custom material combinations required extensive metallographic analysis and die optimization to ensure joint integrity across high-strength materials. The equipment carries CE certification (Certificate Numbers: ISETC.001120210222 and 3N210218.PTK0S25) and complies with MSDS standards (262620110732), ensuring compliance with international workshop safety regulations.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

For collision repair facilities managing aluminum structural work, choosing an SPR system with adjustable 30-60kN force and a universal die kit is essential for safety-standard compliance. Selecting equipment backed by thorough quality control—such as 100% full inspection prior to shipping—minimizes equipment downtime during critical rebuilds. Under ODM and OBM business models, standard systems ship within 3 days, while customized tooling configurations are delivered within 15 days to meet specific fleet requirements. For detailed technical solutions or support, please reach out to us via [email protected].

About Us

PHOTON TECHNOLOGY KUNSHAN CO.,LTD, known in the market as Questok, is an industrial technology company established in 2011. Operating from a 5000 square meter factory, the company develops and manufactures advanced fastening and joining solutions, exporting 60% of its production to markets across North America, South America, Europe, and Asia. Questok holds CE and MSDS certifications for its product lines and has supplied specialized joining equipment to automotive manufacturers and repair networks globally, including NIO, SAIC, and Mercedes-Benz.
