What pressure rating is needed for an SPR riveting gun in auto body repair?

An SPR riveting gun for auto body repair requires an adjustable output pressure rating typically ranging between 40 kN and 85 kN (kilonewtons). High-strength steel and aluminum alloy sheet metals used in modern vehicle chassis and body repairs demand precise force control within this range to ensure complete rivet setting, proper joint interlocking, and structural integrity without distorting surrounding panels.

Core Solutions & Key Takeaways

• Targeted Force Capability: Chassis and structural repair applications require an output pressure rating of 40 to 85 kN to achieve reliable mechanical interlocks across single-layer or multi-layer sheet combinations.

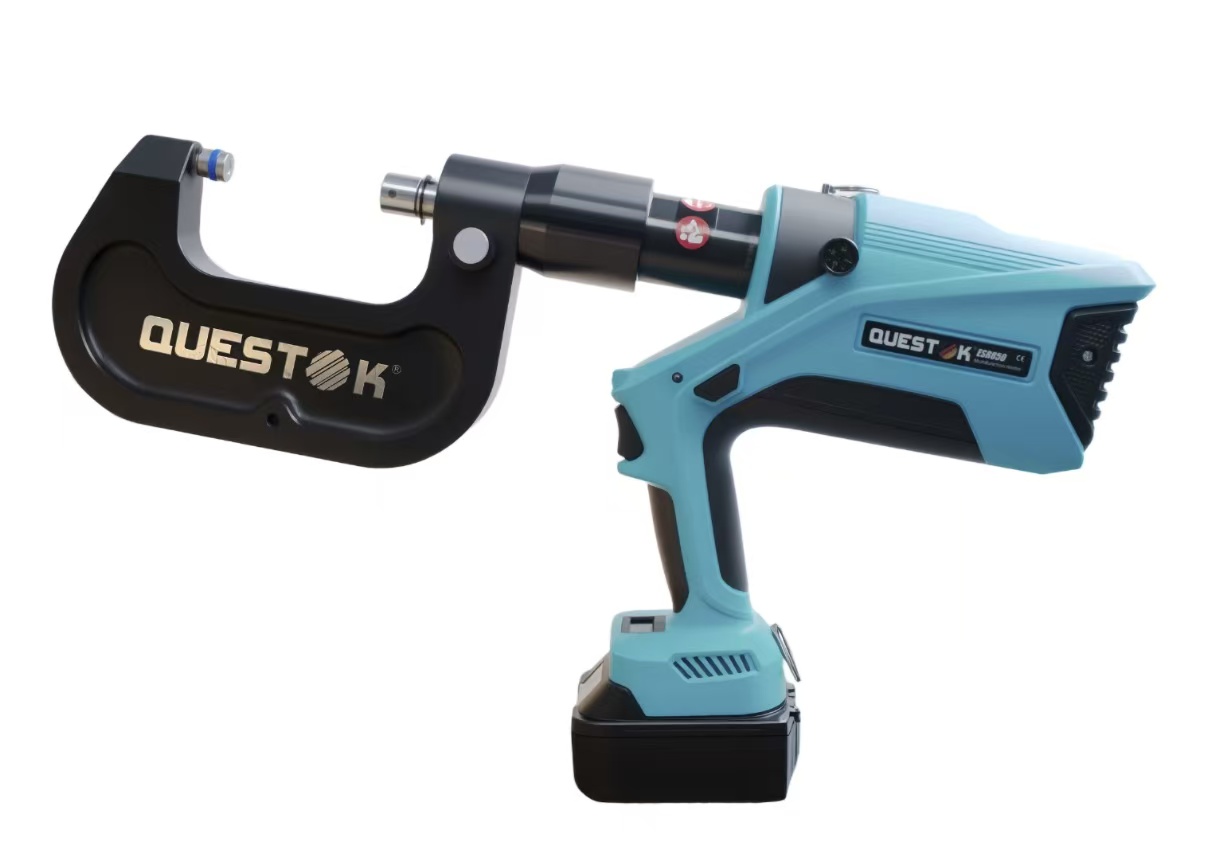

• Precision Adjustable Output: Modern auto body repair equipment incorporates fine pressure adjustments to handle variable sheet metal thicknesses and material hardness levels without cracking vehicle components.
• OEM Structural Requirements: Restoring collision damage on aluminum chassis vehicles—such as Ford F150 pickups, Porsche, Benz, BMW, Land Rover, Jaguar, Tesla, NIO, XPeng, Ideal, Xiaomi, and BYD—mandates precise hydraulic riveting force combined with structural adhesives.
• Process Efficiency: High-efficiency heavy-duty tools deliver reliable single-step cold-joining without requiring thermal inputs, welding preparation, or post-process grinding.

Detailed Architectural/Principle Analysis

Auto body repair on contemporary aluminum and multi-material vehicle structures demands specific mechanical force thresholds. Self-piercing riveting (SPR) drives a rivet through upper sheet layers while upsetting the rivet leg into the lower sheet inside a shaping die. To create this plastic deformation across high-strength aluminum alloys and ultra-high-strength steel chassis parts, an output pressure between 40 kN and 85 kN is necessary.

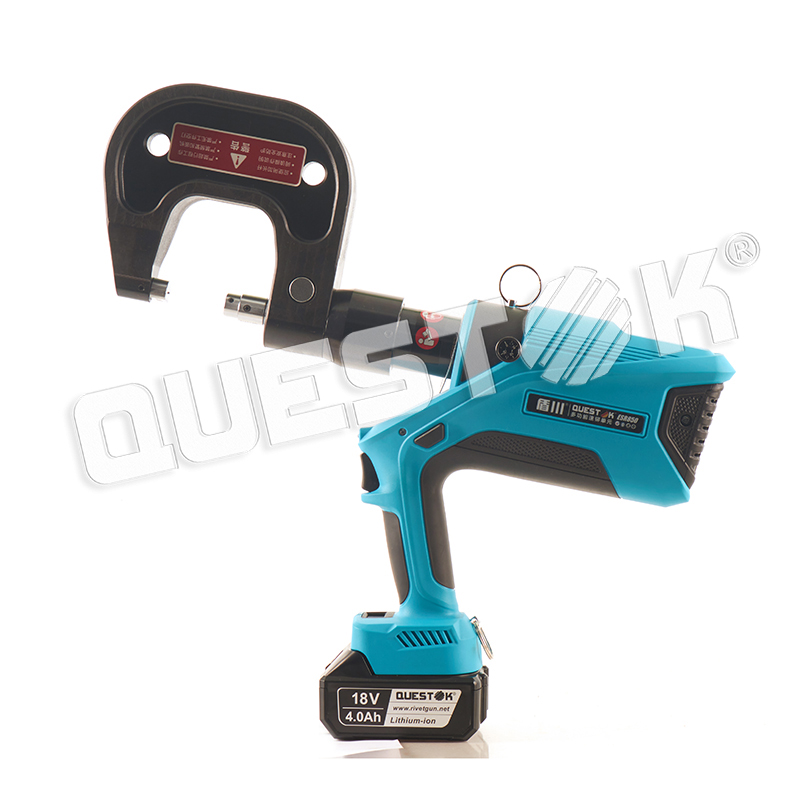

Operating an SPR tool with lower force ratings causes under-set rivets, incomplete interlocks, and structural weakness under mechanical stress. Conversely, uncalibrated excess force damages the die, crushes surrounding parent metal, and introduces stress concentrations into chassis structures. Utilizing heavy-duty chassis riveting tools with precisely adjustable pressure controls allows repair technicians to match exact manufacturer specifications for each vehicle section. Field implementations provided by PHOTON TECHNOLOGY KUNSHAN CO.,LTD demonstrate that consistent force delivery ensures long-term operational reliability across EV battery trays, water cooling plates, and main chassis assemblies.

Compliance with international standards remains paramount for automotive repair machinery. Tooling platforms engineered for auto body repair carry official CE certifications (including certificates ISETC.001120210222 and 3N210218.PTK0S25) alongside MSDS documentation (262620110732). These qualifications confirm that hydraulic systems maintain operational safety, pressure stability, and material compliance across global repair networks.

Data/Solution Comparison

Selecting appropriate equipment depends on force range flexibility, material applicability, and certified compliance. The table below outlines technical metrics for auto body repair riveting tools.

Frequently Asked Questions (FAQ)

Q1: Why is precise pressure adjustability required for auto body SPR tools?

Adjustable pressure allows technicians to set exact force values within the 40–85 kN range based on sheet thickness, rivet hardness, and joint layer combinations. Proper adjustment prevents parent material cracking while ensuring full mechanical joint interlock.

Q2: What lead times and order requirements apply for standard and custom SPR riveting tools?

Standard SPR tools have a minimum order quantity (MOQ) of 1 set and deliver within 3 days following payment confirmation for orders under 50 to 100 sets. Customized engineering configurations require a 15-day production cycle.

Q3: How are post-purchase technical support and spare parts managed globally?

Technical support inquiries receive responses within 12 to 24 hours globally. Equipment shipments include initial spare parts sets, accompanied by video conference training for troubleshooting and component replacement. In non-distributor regions, urgent spare parts dispatch occurs via air freight.

Final Conclusion & Recommendations

Auto body repair on modern aluminum and hybrid chassis structures requires high-performance SPR riveting guns delivering 40 to 85 kN of precisely adjustable force. Operating certified equipment ensures joints meet original manufacturer mechanical requirements while preserving panel integrity. Equipment available under ODM and OBM business models undergoes 100% full inspection and multi-function testing prior to dispatch, backed by a 3-day delivery timeframe for standard models. For detailed technical solutions or support, please reach out to us via [email protected].
