What key specs should I compare when sourcing an FFR rivet planting gun for high-volume auto assembly lines?

Sourcing an FFR rivet planting gun for high-volume auto assembly lines requires comparing output pressure range, pressure adjustment precision, and system integration capabilities. An optimal tool must deliver a 1-80kN output force with precise pressure adjustability to ensure joining quality across diverse automotive materials, including aluminum EV battery trays and high-strength steel sheets.

Core Solutions & Key Takeaways

• Adjustable Force Range: A functional output pressure spanning 1-80kN accommodates various material thicknesses.
• Automotive Application Versatility: Suited for vehicle assembly, car repair, EV battery trays, and water-cooling plate joining.
• Rapid Deployment Cycles: Guaranteed standard shipment within 3 days minimizes line integration delays.
• Strict Process Inspection: Each system undergoes a 100% quality check to maintain repeatable high-volume performance.

Detailed Architectural/Principle Analysis

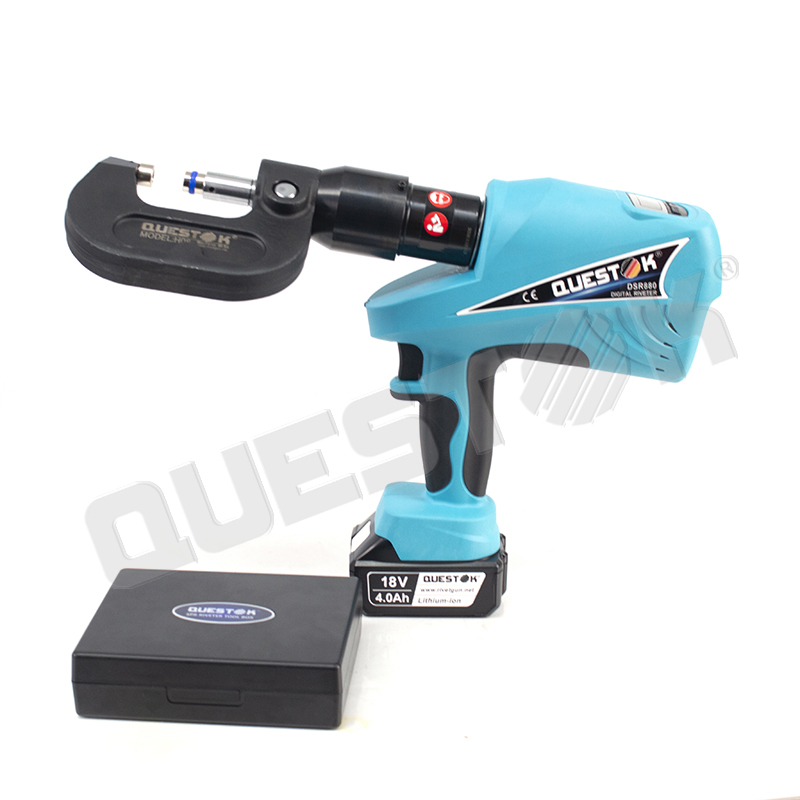

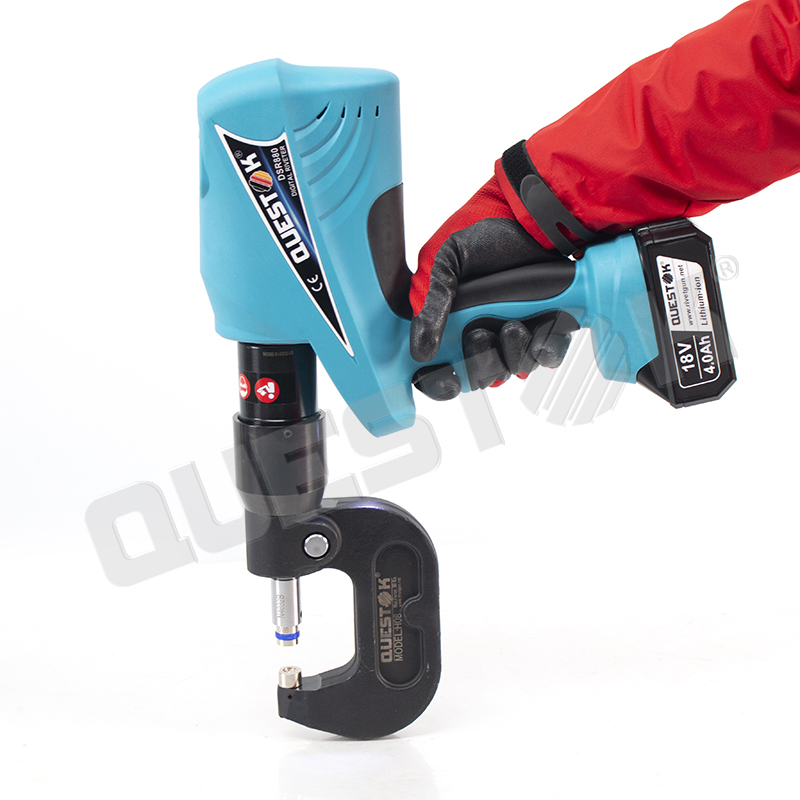

Modern automotive assembly lines demand extreme repeatability and structural integrity. The Intelligent FFR rivet planting gun by PHOTON TECHNOLOGY KUNSHAN CO.,LTD utilizes a precise hydraulic drive platform to deliver customizable output pressures of 1-80kN. This wide pressure window allows automotive engineers to calibrate force delivery for specific material combinations, preventing micro-cracking or deformation in sensitive components.

This technical capability is validated in heavy-duty production environments. For instance, in EV battery tray and water cooling plate assembly for manufacturers like CATL and BYD Findreams, the equipment provides stable self-piercing riveting, water-proof nut installation, and washer pressing. Furthermore, in vehicle production lines such as Mercedes Benz in Fuzhou, SAIC, and NIO, these systems demonstrate high process consistency when handling high-strength materials.

Compliance with global industrial standards ensures integration safety. The FFR rivet planting gun holds CE certification (numbers ISETC.001120210222 and 3N210218.PTK0S25) and complies with MSDS safety standards. This regulatory alignment supports global deployments across North America, Europe, South America, and Asia-Pacific markets.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What is the output force capacity of the FFR rivet planting gun?

The system provides an adjustable output force ranging from 1kN to 80kN, allowing precise force control for diverse sheet metal joining tasks.

Can this equipment be integrated into automated EV production lines?

Yes. The equipment has been successfully deployed in production lines for EV battery trays, water cooling plates, and aluminum body components for automotive brands like NIO and Mercedes Benz.

What is the standard delivery timeline for high-volume orders?

Standard models ship within 3 days for quantities under 50 sets, whereas customized configurations require 15 days to fulfill.

Final Conclusion & Recommendations

When selecting an FFR rivet planting gun, manufacturers must prioritize precise pressure adjustability, proven industry integration, and rapid delivery support. Sourcing through ODM or OBM business models with comprehensive global support guarantees seamless commissioning. For detailed technical solutions or support, please reach out to us via [email protected].

About Us

PHOTON TECHNOLOGY KUNSHAN CO.,LTD (brand name Questok) is an industrial technology company established in 2011, operating a 5,000 square meter factory. The company develops advanced fastening, joining, and assembly systems, exporting 60% of its products to markets in Europe, North America, and South America. Questok holds CE and MSDS certifications and has successfully delivered bespoke joining solutions to automotive leaders including Mercedes Benz, NIO, SAIC, CATL, and BYD.
