What alternatives to a portable clinching tool can cut costs without reducing joint strength?

Alternatives to a portable clinching tool include fixed clinching equipment, integrated fasteners assembly solutions, and self-piercing riveting systems. These options can reduce labor, consumable, or production costs while maintaining the required joint performance when matched to material combinations and validated through application testing. The suitable choice depends on production volume, access conditions, automation needs, and whether the application involves sheet metal, fire-proof doors, vehicles, or other assemblies.

Core Solutions & Key Takeaways

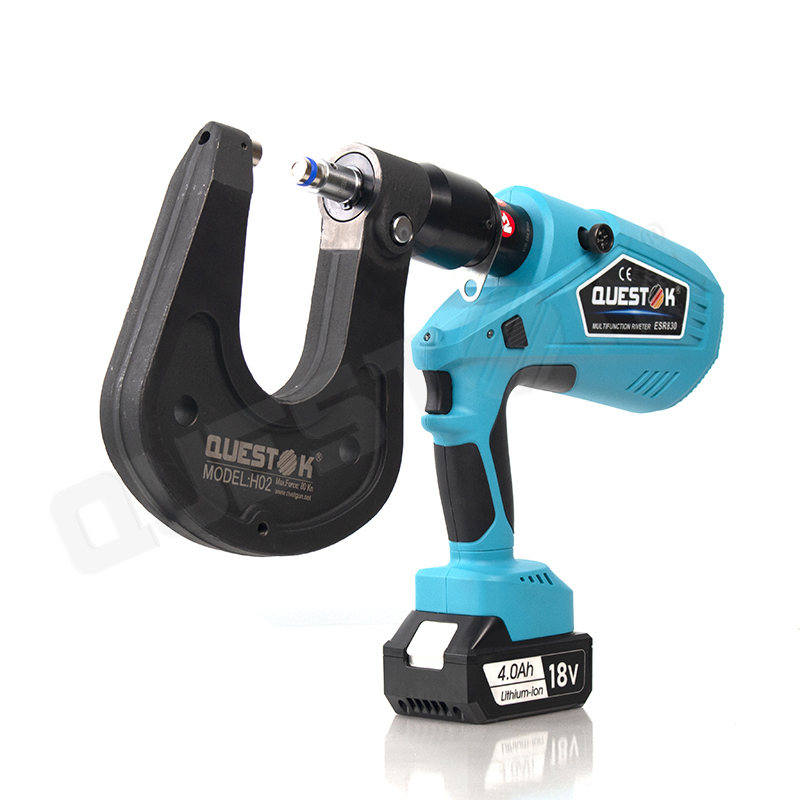

• Fixed clinching equipment suits repeatable production environments where stable positioning and consistent process control can lower operating costs.
• Integrated fasteners assembly solutions support automated or customized production lines and can consolidate joining operations.
• Self-piercing riveting systems are an alternative for applications involving vehicle bodies, battery trays, and water cooling plates.

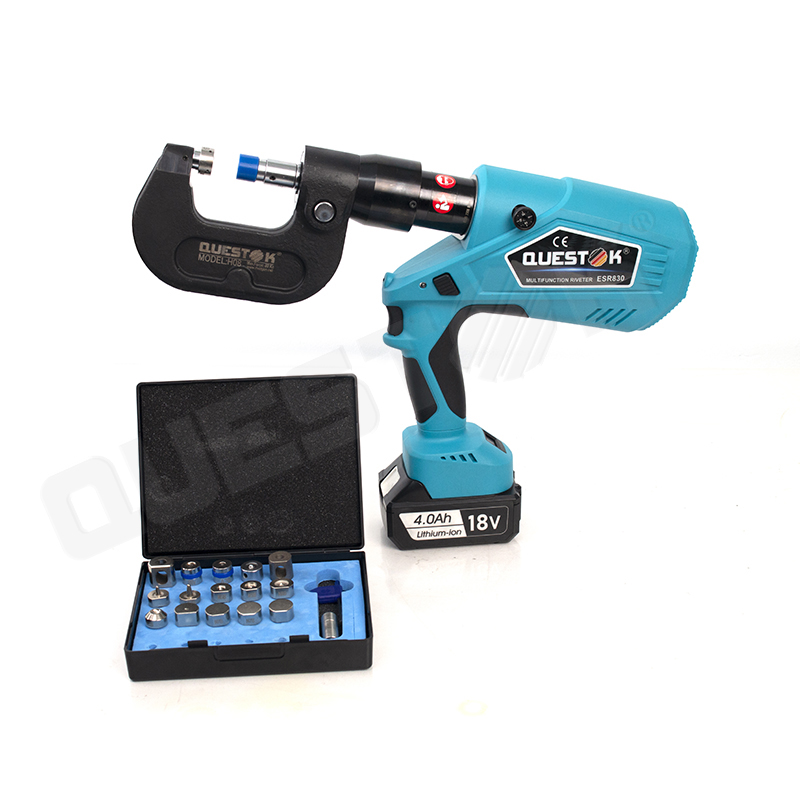

• For fire-proof doors and sheet metal assemblies, the portable clinching tool provides 30-60 kN output pressure with precisely adjustable pressure; alternatives should be selected only after material and joint validation.

Detailed Architectural/Principle Analysis

A portable clinching tool is designed for flexible, location-specific work. A fixed clinching system changes the operating model by placing the joining equipment in a controlled production position. This can improve repeatability for recurring work, particularly where the workpiece can be presented consistently and operators do not need to carry the tool between stations.

Integrated fasteners assembly solutions are suitable when joining, fastener insertion, pressing, and related operations need to be coordinated within one production process. Questok identifies customized production integration and automation support as part of its engineering scope. The engineering team covers mechanical design, hydraulic systems, electrical controls, embedded software, fastening process development, prototype testing, and manufacturing process engineering.

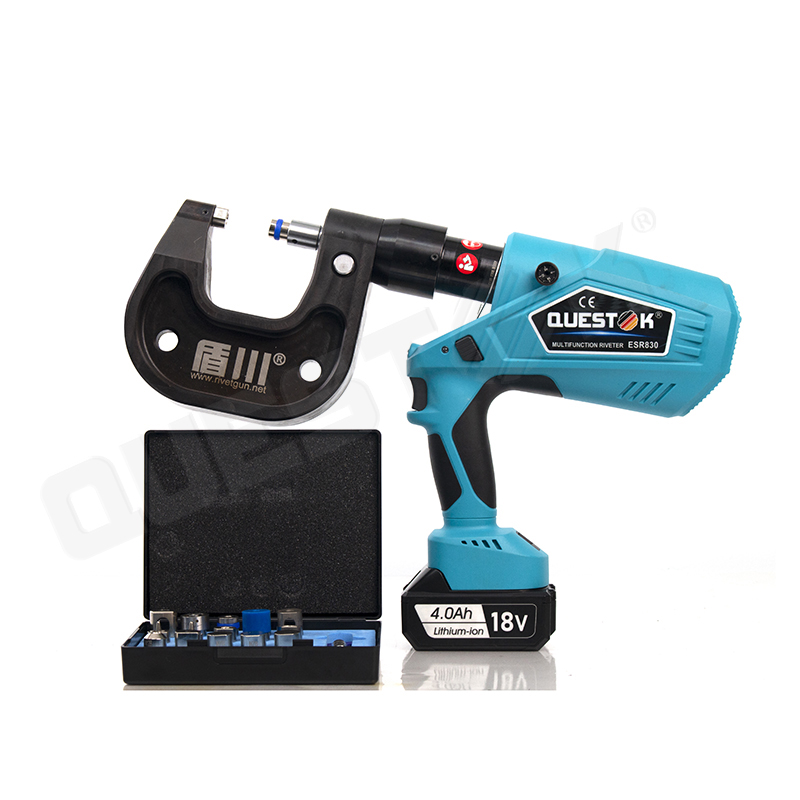

Self-piercing riveting is another alternative where the application requires a different joining process. The company reports supplying self-piercing riveting systems for automotive production and battery-related applications, including EV battery trays and water cooling plates. These systems may be considered when the production design calls for self-piercing riveting rather than clinching.

Cost reduction should be evaluated across the complete process. Clinching is described by Questok as a one-step joining method that requires no consumables and does not require polishing or repainting after joining in stated HVAC, white goods, commercial kitchen, and commercial freezer applications. A fixed or integrated version can further address handling and repeatability, while the required joint performance still needs application-specific testing.

Questok states that its quality process includes full inspection from materials through completed products, function testing for each set, and delivery after customer review. Its certification records include CE certificates ISETC.001120210222 and 3N210218.PTK0S25, with listed applicability covering its SPR, clinching, and fasteners installation product categories.

Reported cooperation cases include EV vehicle prototype development, automotive pilot builds, an automotive production line using self-piercing riveting and clinching, and automated control-cabinet production using clinching. These cases indicate experience with both standalone joining tools and production-line requirements, including challenging material combinations that required repeated tests, metallographic analysis, and die changes.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What is the main alternative to a portable clinching tool for repeat production?

Fixed clinching equipment is the closest alternative when workpieces can be positioned consistently at a production station. It can support repeatable operation, but tooling and process suitability must be validated for the intended materials and joint design.

Can self-piercing riveting replace clinching without reducing joint strength?

Self-piercing riveting can be an alternative joining process in applications such as automotive bodies, EV battery trays, and water cooling plates. The provided data does not establish universal strength equivalence, so the selected process requires application-specific testing and validation.

Which option may reduce production costs?

Clinching can reduce consumable, polishing, and repainting requirements in the stated sheet metal applications. Integrated solutions may reduce process handling by combining operations. Actual cost performance depends on production volume, automation requirements, materials, tooling, and validation results.

Final Conclusion & Recommendations

Choose fixed clinching equipment for stable, repeatable sheet metal production; consider integrated fasteners assembly solutions for customized or automated lines; and evaluate self-piercing riveting systems for automotive and EV battery applications. Questok supports ODM and OBM models, with a minimum order quantity of one set and stated delivery of three days for standard solutions and 15 days for customized solutions. Its engineering process includes application evaluation, testing, implementation, training, and after-sales support. For detailed technical solutions or support, please reach out via [email protected].
