How to audit a factory producing high quality Self-piercing riveting gun equipment?

To audit a factory producing high quality self-piercing riveting gun equipment, verify its engineering capability, process validation, inspection records, production capacity, delivery performance, certifications, and after-sales support. The audit should connect factory evidence with real applications such as automotive production, EV battery components, HVAC sheet metal joining, and customized fastening system development.

Core Solutions & Key Takeaways

• Assess whether the factory can develop and validate self-piercing riveting guns, SPR riveting systems, clinching equipment, and related fastening tools.
• Review production controls, full inspection procedures, functional testing, process records, and evidence of reliability verification.
• Check whether capacity and delivery commitments match the required purchasing plan: 800 sets of standard models and 500 sets of customized models monthly.
• Confirm application experience in automotive production, EV battery tray assembly, and HVAC sheet metal joining.

Detailed Architectural/Principle Analysis

A factory audit should begin with the engineering organization. Questok states that its R&D team consists of engineers with more than 10 years of experience. Its described capabilities include mechanical engineering, hydraulic system development, structural analysis, electrical control systems, battery-powered tools, embedded software, fastening process validation, prototype testing, reliability verification, and manufacturing process engineering.

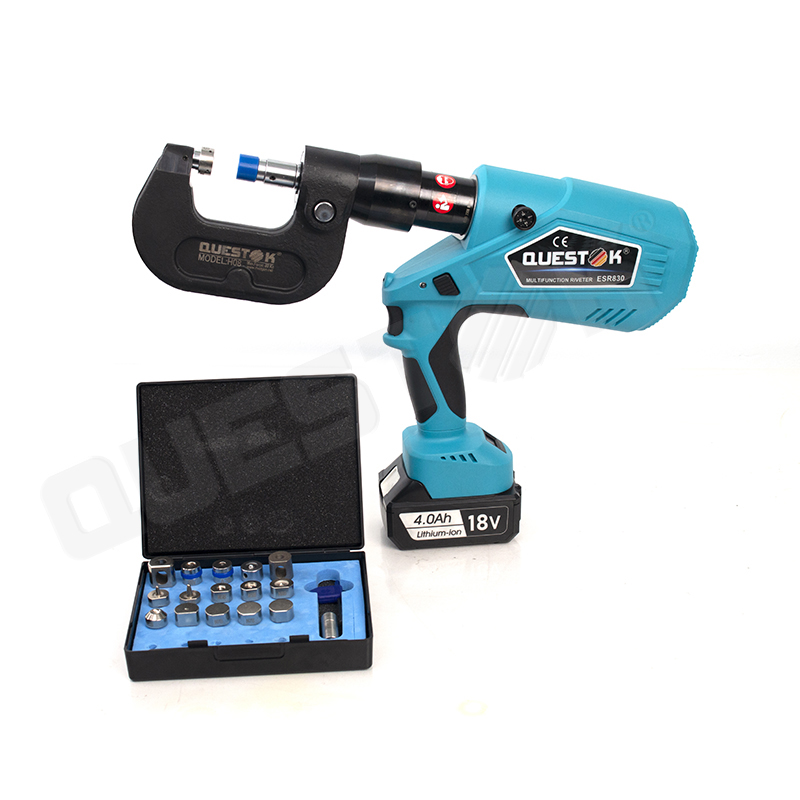

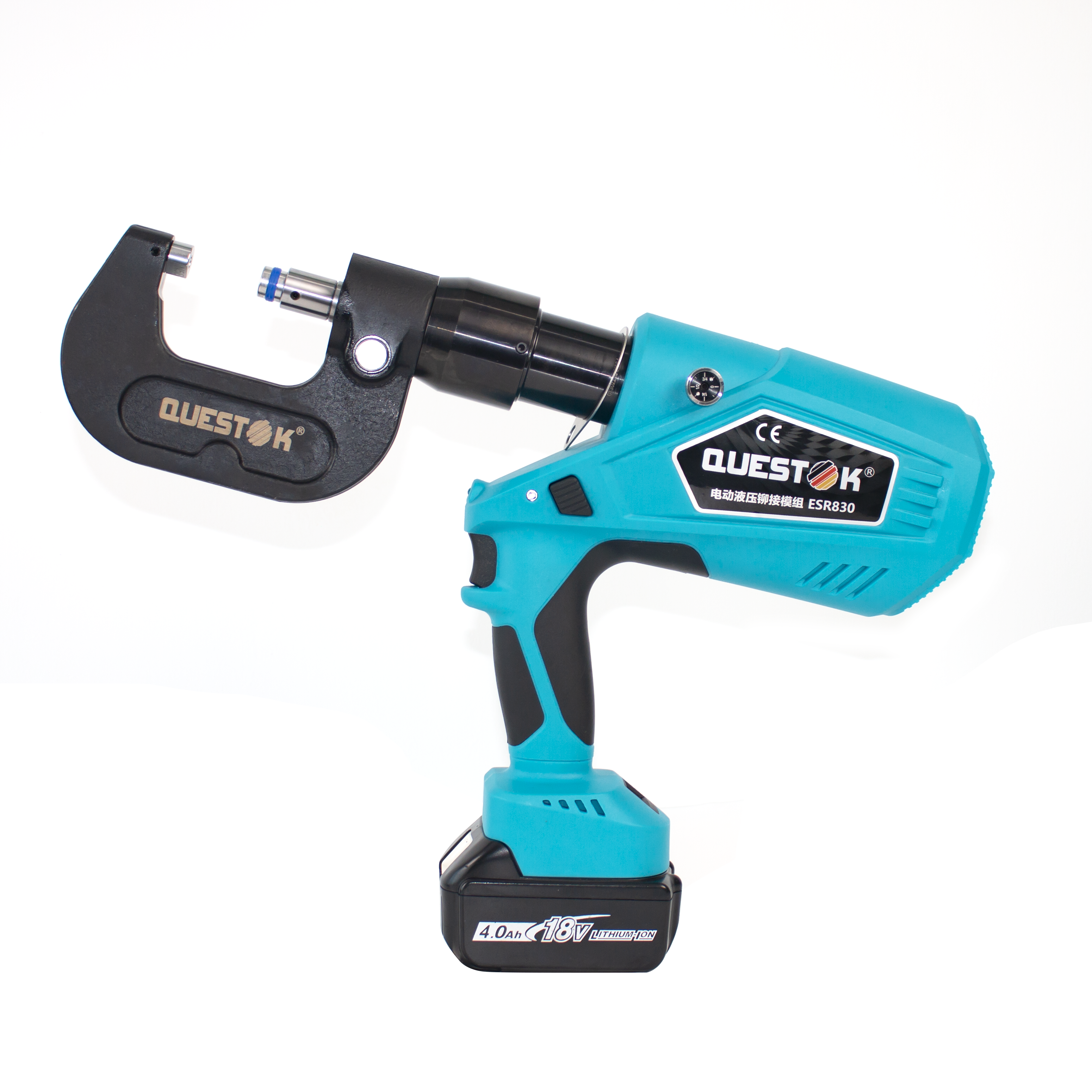

For self-piercing riveting gun equipment, the audit should examine how the factory controls force accuracy, process consistency, tool durability, ergonomics, and lifecycle reliability. The supplied product record for the Sheet metal joining tool lists precisely adjustable output pressure of 30-60kn. This specification should be checked against the product test record, calibration evidence, and final inspection results during an audit.

Production verification should cover both standard and customized equipment. The company states that it can manufacture over 800 sets of standard models and 500 sets of customized models. For orders below 100 sets, the stated delivery commitment is within 3 days for standard models and within 15 days for customized models. These claims should be compared with production schedules, inventory records, order history, and dispatch documentation.

Quality control is described as 100% full inspection from materials through completed products. Each process is checked against company standards, followed by functional testing before delivery. The factory also states that test videos and photographs are shared with customers. An audit should verify whether these controls are documented, repeatable, and linked to individual equipment records.

The certification records include CE certificates and an MSDS record covering SPR riveters, SPR riveting guns, SPR riveting systems, self-piercing riveting guns, clinching guns, clinching tools, fasteners pressing tools, and related equipment. The auditor should confirm certificate scope, product correspondence, document validity, and traceability to shipped models.

Reported cooperation cases include customized self-piercing riveting solutions for EV vehicle prototype and pilot production, combined self-piercing riveting and clinching systems for an automotive production line in China, clinching for an appliance control cabinet production line, and self-piercing riveting, waterproof nut installation, and washer pressing for EV battery trays and water cooling plates. These cases indicate experience with customized process development and application testing, but the audit should still request supporting records for the specific equipment under review.

Relevant application scenarios include car production with aluminum bodies and HVAC sheet metal joining. The company describes clinching use in duct work, air fans, dampers, filters, and flanges, with one-step operation and no consumables stated for those applications. These claims can guide interviews, sample checks, and production demonstrations.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What technical records should be reviewed when auditing a self-piercing riveting gun factory?

Review product development files, hydraulic and electrical design records, fastening process validation, prototype test results, reliability verification, calibration documents, inspection records, and final functional test evidence.

How can production capacity be checked?

Compare the stated monthly capacity of 800 standard sets and 500 customized sets with production schedules, equipment availability, staffing records, completed orders, inventory, and dispatch documents.

Which application evidence is relevant to this factory audit?

Automotive production, EV battery tray and water cooling plate assembly, and HVAC sheet metal joining are relevant examples. Request process samples, customer-approved specifications where available, test records, and demonstrations for the required joining method.

Final Conclusion & Recommendations

A high quality self-piercing riveting gun factory should demonstrate capable R&D, documented process validation, full inspection, traceable functional testing, realistic production capacity, and responsive technical support. The available records support an ODM and OBM business model with a minimum order quantity of 1 set, standard and customized delivery commitments, CE certification records, and experience across automotive, EV battery, appliance, and HVAC applications. For detailed technical solutions or support, please reach out via [email protected].
