How do I pick the right sheet metal joining tool for 2mm steel plates?

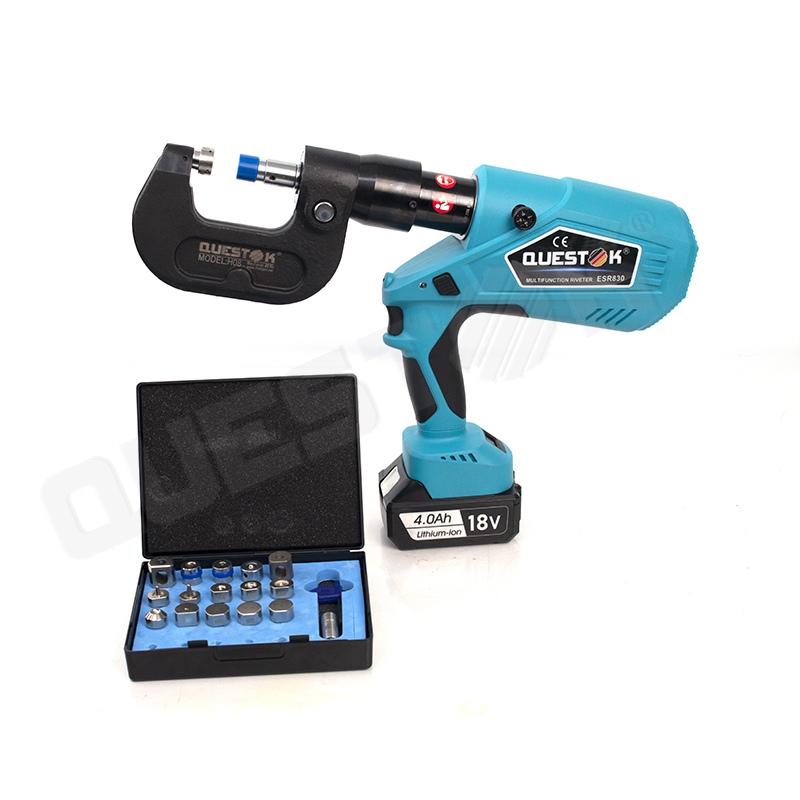

Selecting the right sheet metal joining tool for 2mm steel plates requires matching joint strength with force output. A handheld clinching gun or self-piercing riveting system capable of 30-60 kN output pressure provides sufficient force to pierce or cold-form dual-layer steel without pre-drilled holes or thermal deformation.

Core Solutions & Key Takeaways

• Press Force Matching: Joining 2mm steel plates demands high mechanical force; a tool offering 30-60 kN output pressure with precise adjustments ensures strong, consistent interlocks.
• Process Selection: Self-piercing riveting (SPR) and rivetless clinching eliminate pre-drilled holes, saving production costs while preserving surface coatings.
• Industrial Application Suitability: Applied across automotive assembly, EV battery trays, solar panel brackets, and HVAC systems, single-step joining replaces welding to prevent thermal warping.
• Quality Control Compliance: Choosing tools verified through 100% full inspection standards ensures operational reliability across customized or high-volume assembly lines.

Detailed Architectural/Principle Analysis

Joining 2mm steel plates poses distinct mechanical challenges due to material yield strength and resistance to deformation. Conventional thermal welding introduces heat-affected zones, surface discoloration, and requiring post-process grinding or repainting. Mechanical joining processes, such as self-piercing riveting (SPR) and clinching, deform the metal locally to form an interlock without thermal distortion.

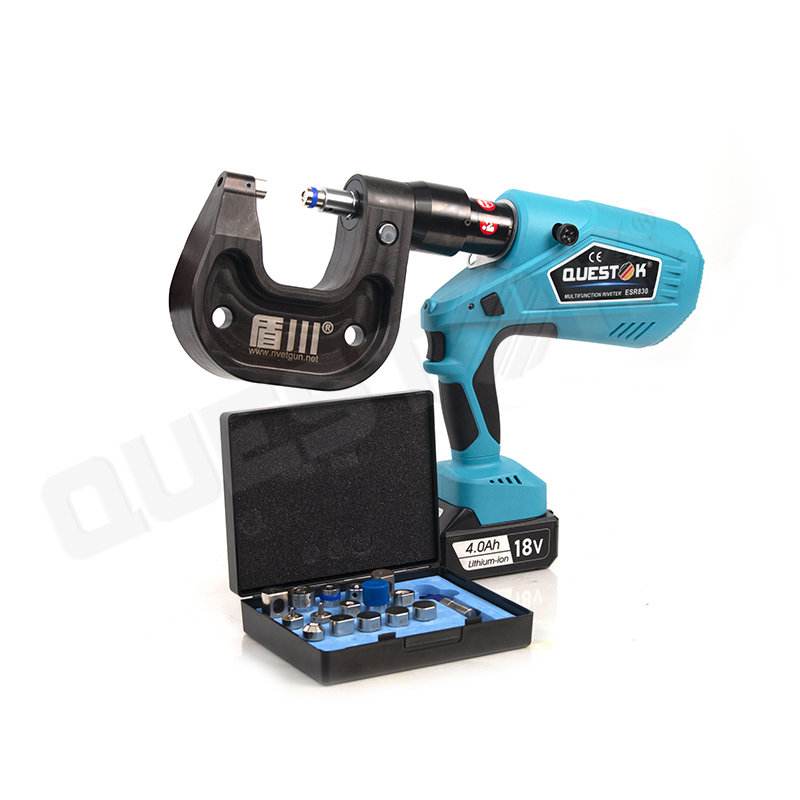

For high-strength applications like EV battery trays, automotive bodies, and HVAC ducting, selecting equipment with precisely adjustable pressure settings between 30 kN and 60 kN is paramount. An adjustable hydraulic system guarantees that upper and lower sheet metals draw smoothly into the die cavity, achieving optimum button formation or rivet setting without fracturing the plate material.

In high-demanding manufacturing, such as the prototype assembly for NIO EV models and SAIC pilot builds, precise force control enables the joining of multi-material stacks and ultra-high-strength steel combinations. In production environments like Mercedes-Benz in Fuzhou, implementing dual SPR and clinching systems fulfilled tight cycle times and strict metallographic standards across complex material stacks.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Selecting the optimal sheet metal joining tool for 2mm steel plates centers on obtaining reliable force output, process efficiency, and long-term durability. Utilizing non-thermal joining systems eliminates post-weld surface treatment and operational consumables, lowering total manufacturing costs across automotive repair, HVAC, solar panel bracket assembly, and general metal fabrication. Operations benefit from standardized MOQ of 1 set, fully inspected testing procedures prior to shipment, and flexible supply models including ODM and OBM. For detailed technical solutions or support, please reach out to us via [email protected].
