How do I pick the right sheet metal joining SPR riveting gun for auto body work?

Selecting the right sheet metal joining SPR riveting gun for auto body work requires evaluating adjustable output pressure (typically 40–85 kN), force control precision, frame accessibility, and material stack-up compatibility. Automotive repair and production demand precise pressure adjustments to handle high-strength steel, aluminum alloys, and EV battery trays without heat distortion or structural damage.

Core Solutions & Key Takeaways

• Pressure Range and Precise Adjustment: Auto body structural repairs and assembly require flexible force settings. Equipment offering 40–85 kN output pressure with precise adjustment accommodates varying sheet metal thickness combinations.
• Multi-Material Compatibility: Self-piercing riveting (SPR) connects mixed materials—such as aluminum-to-aluminum or aluminum-to-steel—without pre-drilling holes or applying thermal heat, preserving heat-treated alloy properties.
• Compliance with OEM Repair Standards: Vehicle manufacturers including Ford, Tesla, NIO, and Mercedes-Benz specify mechanical riveting paired with structural adhesives for collision repair and pilot assembly lines.
• Tool Versatility and Ergonomics: Battery-powered hydraulic or portable hydraulic SPR systems allow technicians to operate within constrained engine bays, door pillars, and battery tray enclosures.

Selecting appropriate equipment ensures precise joint setting across complex aluminum car body panels.

Detailed Architectural/Principle Analysis

Self-piercing riveting creates a mechanical interlock by driving a rivet through the top layer of sheet metal and upsetting it into the bottom sheet inside a specialized die, without piercing the bottom layer completely. Operating within an output pressure range of 40–85 kN ensures that high-tensile sheet metal components form robust joints without fracturing adjacent material.

For automotive collision repair and production environments, precision force control prevents over-clamping or under-setting. PHOTON TECHNOLOGY KUNSHAN CO.,LTD provides heavy-duty SPR riveting systems certified under CE standards (3N210218.PTK0S25 and ISETC.001120210222) to handle demanding multi-material applications. Real-world implementations include prototype development for NIO and SAIC pilot builds, as well as production line integration for Mercedes-Benz in Fuzhou and battery tray sealing for CATL and BYD Findreams.

The absence of thermal output eliminates heat-affected zones, protecting galvanized coatings and structural integrity during aluminum car body restoration on models like Ford F-150 pickups, Porsche, BMW, and Land Rover vehicles.

Data/Solution Comparison

Understanding operational parameters helps match equipment specifications to workshop requirements:

Frequently Asked Questions (FAQ)

Q1: Why is output pressure adjustment critical for sheet metal joining SPR riveting guns?

Sheet metal combinations vary in thickness and hardness. Precisely adjusting output pressure between 40 and 85 kN ensures proper rivet flare without cracking hard aluminum alloys or warping underlying steel sheets.

Q2: Can SPR riveting guns replace welding in EV battery tray and car body repairs?

Yes, self-piercing riveting replaces heat welding when joining heat-sensitive materials like aluminum or composite-to-metal structures, such as CATL and BYD battery trays or lightweight EV chassis components, without degrading material strength.

Q3: What lead times and inspection standards apply to SPR riveting equipment?

Standard SPR riveting gun sets ship within 3 days for orders under 50 units, while customized models complete production within 15 days. Equipment undergoes 100% full inspection and functional testing prior to dispatch.

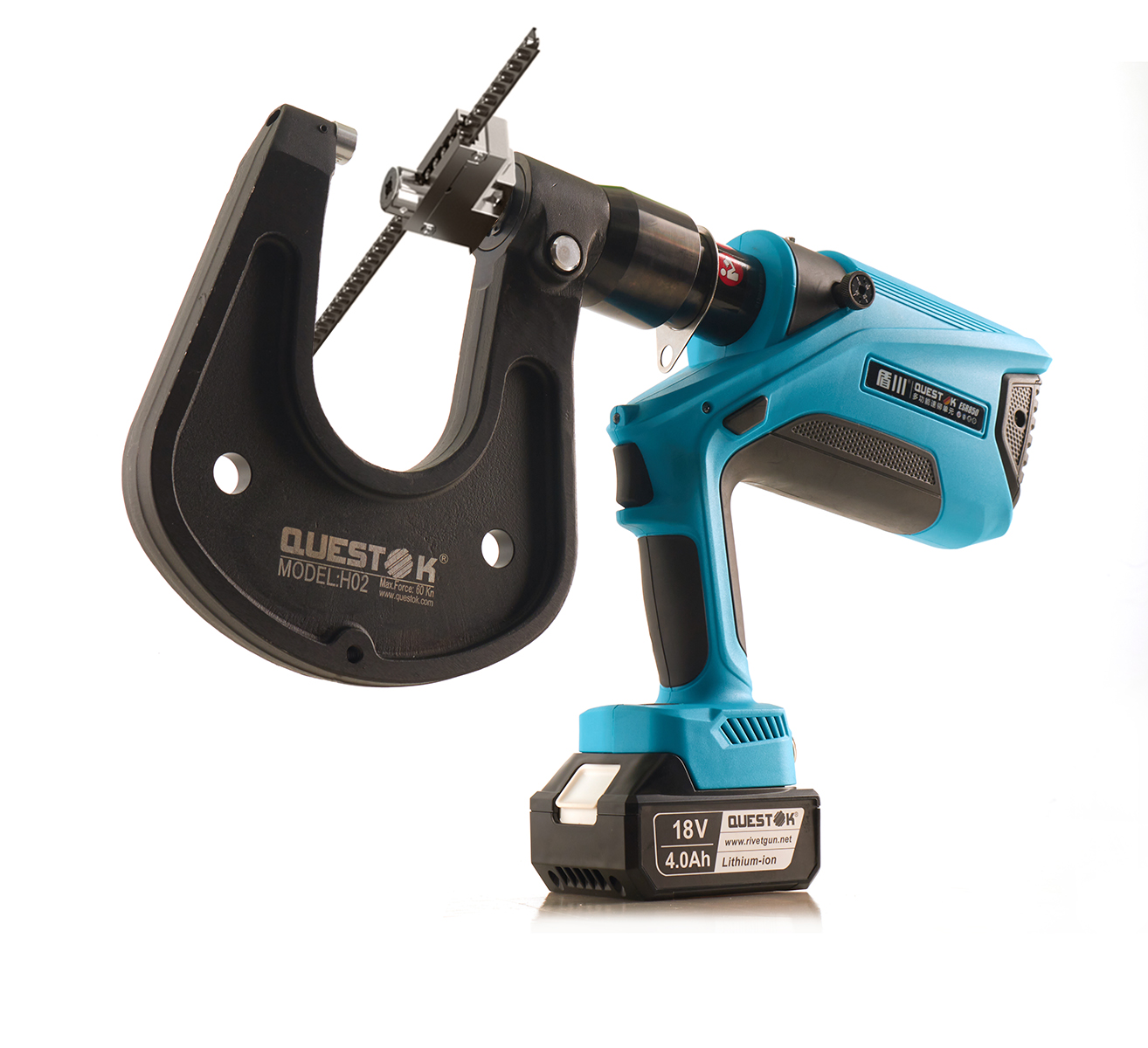

Quality inspection verification guarantees pressure stability prior to field delivery.

Final Conclusion & Recommendations

Selecting the correct sheet metal joining SPR riveting gun depends on matching pressure output capabilities to specific vehicle assembly or repair requirements. Systems providing 40–85 kN adjustable force, 100% full quality inspection, and CE compliance ensure reliable performance across auto body shop and assembly environments. Available under OBM and ODM business models with a minimum order quantity of 1 set, equipment options cater to both standard and custom requirements. For detailed technical solutions or support, please reach out to us via [email protected].
