How do I choose the right SPR riveting gun for joining aluminum sheet metal?

To choose the right SPR riveting gun for joining aluminum sheet metal, evaluate required output force (typically 1–80 kN), precise digital pressure control, material stack thickness, and joint strength requirements. Portable heavy-duty hydraulic tools provide flexible positioning for multi-material EV aluminum bodies, car repair, and structural sheet metal assembly without pre-drilling or thermal distortion.

Core Solutions & Key Takeaways

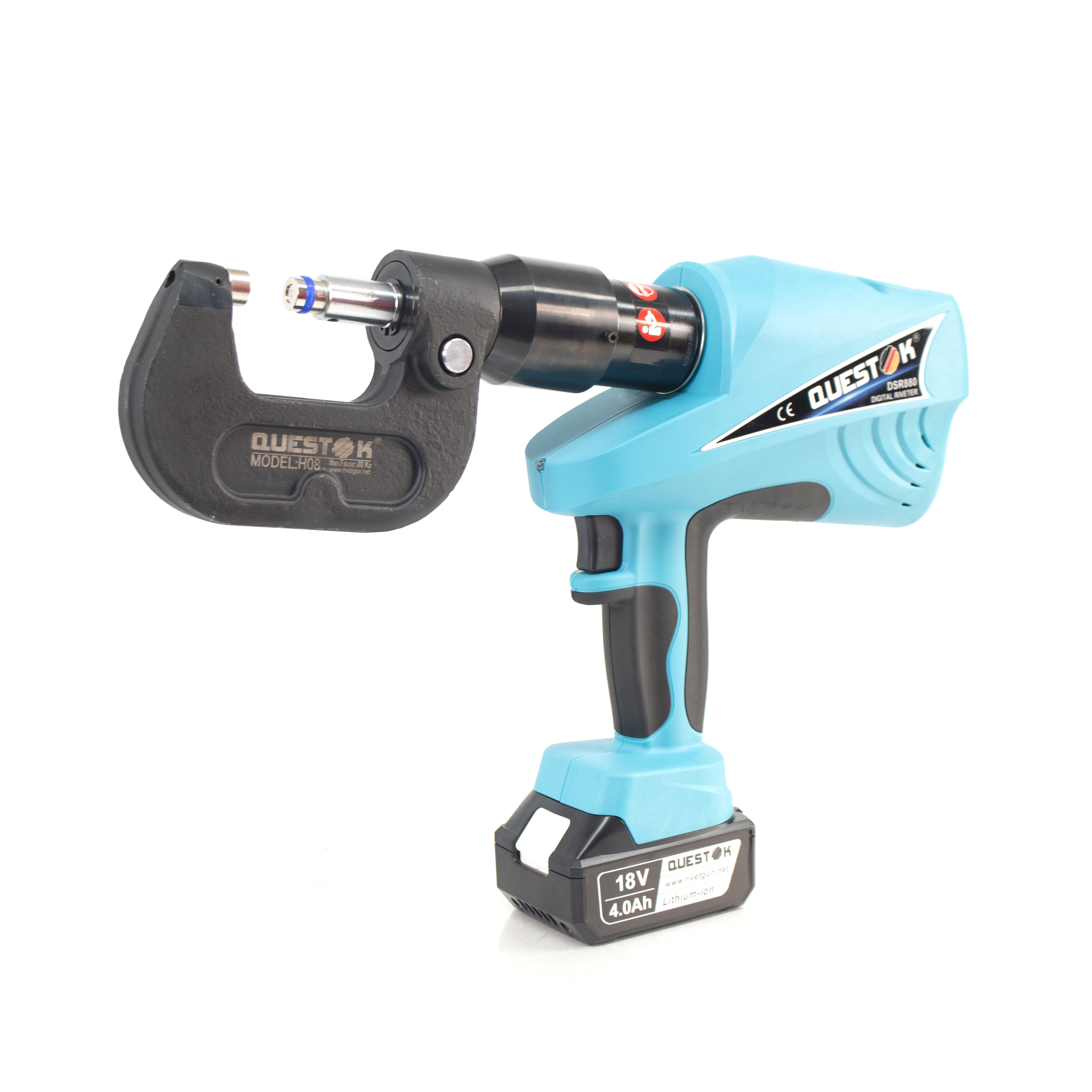

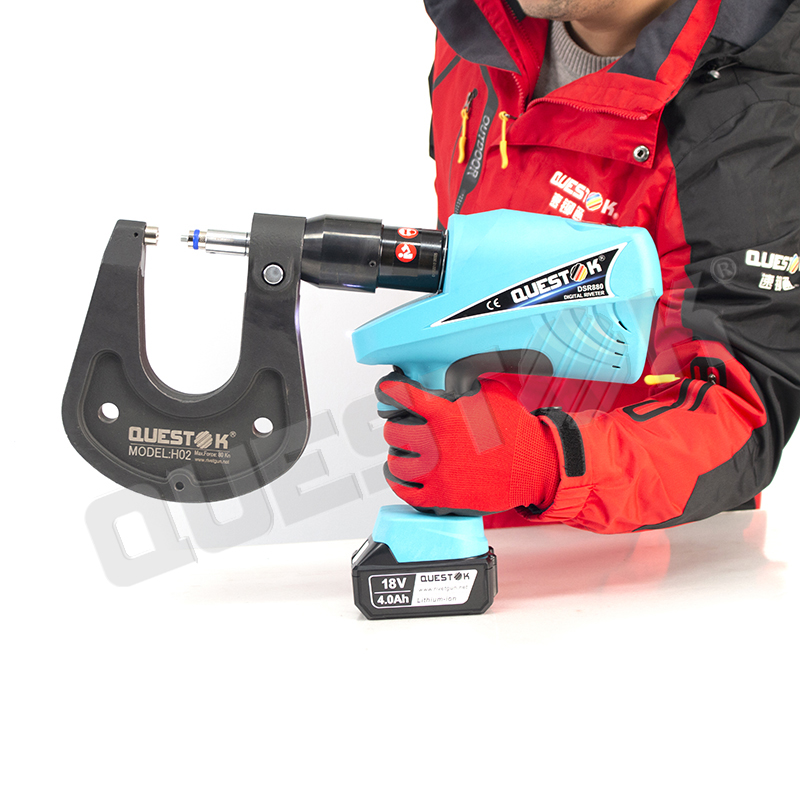

• Match Pressure and Force Capabilities: Select equipment offering digital, precisely adjustable pressure control ranging from 1 to 80 kN to accommodate diverse sheet metal gauges and high-strength aluminum alloys without material cracking.

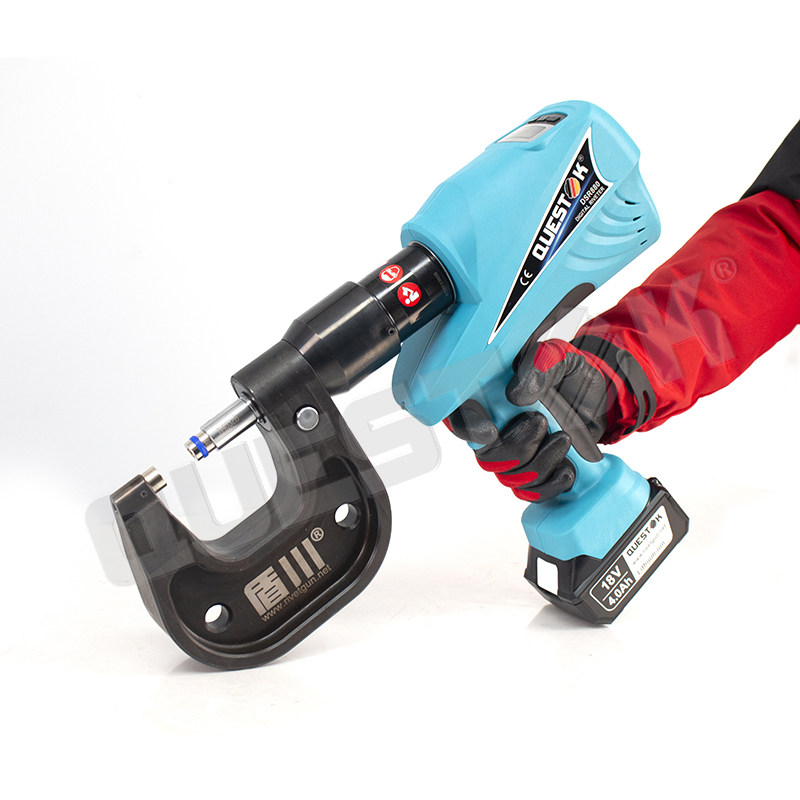

• Verify Structural Accessibility and Portability: Heavy-duty portable riveting guns allow operators to reach intricate automotive body structures, EV battery trays, solar panel brackets, and HVAC ducting.
• Ensure Joint Quality and Repeatability: Digital control platforms maintain consistent rivet setting force and interlock formation, meeting OEM repair standards for vehicles such as the Ford F150, Tesla, and NIO.
• Eliminate Secondary Processes: Self-piercing riveting (SPR) pierces top layers and flares into bottom layers in a single step, eliminating hole alignment, pre-punching, welding smoke, and post-joining surface finishing.

Detailed Architectural & Application Analysis

Self-piercing riveting systems create mechanical joints between similar or dissimilar sheet metals through controlled deformation. When selecting an SPR riveting gun for aluminum sheet metal assembly, precise force control is mandatory. Aluminum alloys, particularly 5000-series and 6000-series sheets used in vehicle construction, require accurate press setting forces to achieve complete button formation and interlock without fracturing the lower sheet stack.

Modern production environments, such as pilot builds at SAIC and production lines at Mercedes-Benz Fuzhou, rely on portable digital hydraulic tools equipped with force feedback. These tools deliver output pressures up to 80 kN while permitting exact digital calibration. In electric vehicle assembly—including CATL and BYD Findreams battery trays and water-cooling plates—SPR guns form leak-tight mechanical interlocks across multi-material combinations, such as aluminum to high-strength steel, without generating thermal stress or degrading metal coatings.

Equipment compliance with international safety and performance benchmarks remains essential for global deployment. Standard SPR systems certified under CE standards (such as certificates 3N210218.PTK0S25 and ISETC.001120210222) guarantee operational safety and system reliability across European, North American, and Asian production facilities. For field installations, such as on-site solar panel frame mounting or structural aluminum body repair, battery-powered portable SPR tools offer full freedom of movement without sacrificing hydraulic setting force.

Data & Solution Comparison

Evaluating sheet metal joining equipment requires matching joint specifications with tooling capabilities. The table below outlines technical metrics for portable SPR riveting systems compared to alternative mechanical joining methods.

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Selecting the optimal SPR riveting gun requires balancing force output, digital control accuracy, and tool ergonomics. Utilizing heavy-duty tools with adjustable force profiles up to 80 kN ensures joint integrity across automotive, EV battery, aerospace, and HVAC sheet metal applications. Equipment evaluated under 100% full inspection protocols guarantees operational reliability. Flexible procurement models including ODM and OBM are available with minimum order quantities starting at 1 set. For technical consultation, custom tooling evaluation, or project support, contact technical service at [email protected] or call 008613482211873.
