How do I choose the right semi-tubular rivet installation gun for heavy-duty assembly lines?

Selecting the right semi-tubular rivet installation gun for heavy-duty assembly lines requires evaluating output force precision, pressure adjustability, and tooling durability. Opt for an industrial-grade gun offering adjustable output pressure between 30-60kN to handle multi-material thicknesses safely, ensuring reliable joint integrity across demanding production cycles.

Core Solutions & Key Takeaways

• Adjustable Force Range: Industrial applications demand precise force application. Selecting a semi-tubular rivet installation gun with an adjustable output pressure of 30-60kN prevents material deformation or micro-cracking in sensitive components like aluminum car bodies, electric vehicle battery trays, and water cooling plates.
• Application Specificity: Different industries require tailored joining configurations. For instance, automotive assembly and repairs (such as on Tesla, NIO, and Mercedes-Benz lines) rely heavily on precise force control, while HVAC ducting and commercial kitchen manufacturing often utilize specialized clinch tooling.
• Process Verification: Industrial-grade assembly lines mandate rigorous Quality Control (QC). Utilizing equipment subjected to 100% full inspection ensures zero-defect manufacturing during high-speed, repetitive operations.

Detailed Architectural/Principle Analysis

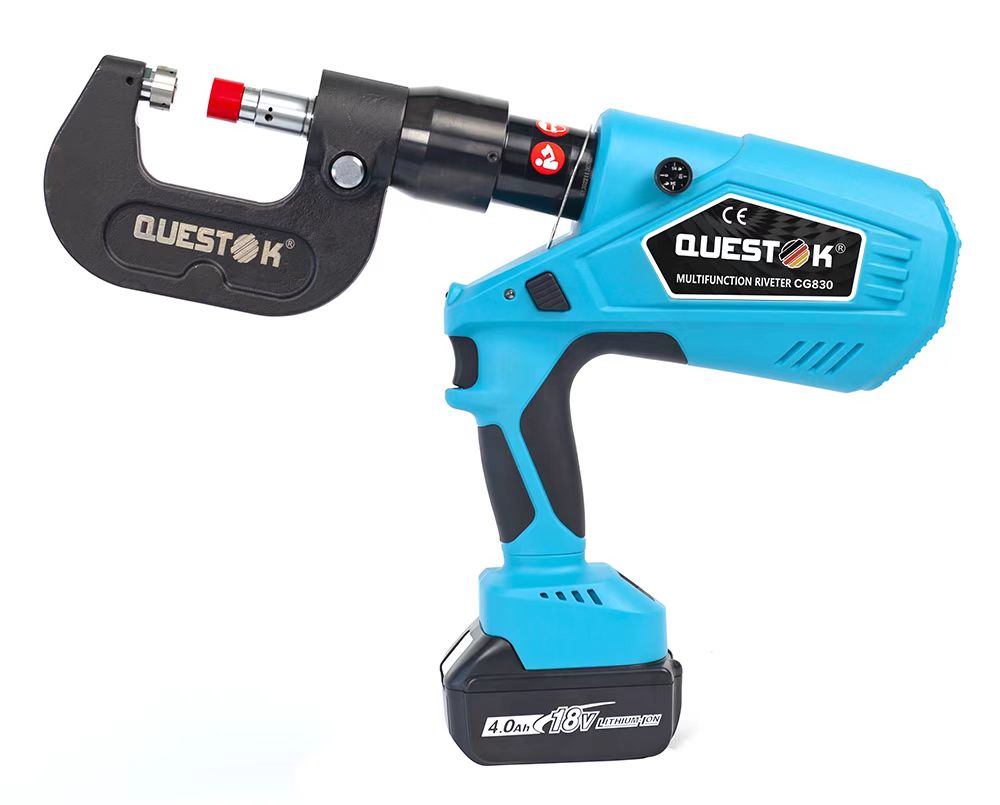

The operational efficiency of a handheld semi-tubular rivet installation gun centers on its hydraulic pressure control module. In heavy-duty manufacturing setups—such as the production of EV battery trays for CATL and BYD Findreams—consistent force delivery prevents structural failures. The integrated pressure adjustment system regulates output precisely within the 30-60kN range. This capability allows operators to transition between varying material hardness profiles, ensuring clean, uniform rivet upsets without damaging adjacent panels.

To operate safely in global manufacturing environments, these tools must carry recognized industrial certifications. Compliance with European CE standards (such as certificate numbers ISETC.001120210222 and 3N210218.PTK0S25) guarantees that electrical and hydraulic components meet strict occupational safety regulations. Furthermore, MSDS certification (number 262620110732) verifies the safety of internal hydraulic fluids, which is vital for aerospace cabinets, aircraft antennas, and solar panel brackets assembly. Real-world application highlights, such as the prototype trials for NIO and SAIC pilot builds, demonstrate that customized die configurations and stable force delivery directly minimize line downtime and scrap rates.

Data/Solution Comparison

Heavy-duty production facilities must balance off-the-shelf speed with bespoke engineering capabilities. The following matrix outlines the operational parameters of standard versus customized semi-tubular rivet installation systems:

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Selecting a semi-tubular rivet installation gun depends on aligning the equipment's output range with your physical material assembly requirements. For high-volume automotive, HVAC, or electronics assembly lines, investing in a robust hydraulic platform with certified 30-60kN adjustable pressure maximizes tooling lifespan and keeps production processes stable. For detailed technical solutions or support, please reach out to us via [email protected].
