How do I choose the right semi-tubular rivet installation gun for different rivet sizes?

Choose a semi-tubular rivet installation gun by matching its adjustable output pressure and tooling geometry to the rivet size and joint material. The provided product data specifies a 30-60 kN output range with precise adjustment but does not list compatible rivet diameters. Confirm the required size, insertion depth, tool clearance, and sample-joint results with the supplier before selecting the final configuration.

Core Solutions & Key Takeaways

• Use the rivet size and required forming force as the primary selection criteria.
• Select a tool with adjustable pressure when different semi-tubular rivet sizes or material combinations must be processed.
• The listed humanoid robot joint semi-hollow rivet installation pressing tool provides a 30-60 kN output pressure range with precise adjustment.
• Because the product data does not state a rivet diameter range, validate each intended rivet size through tooling checks and sample testing.

Detailed Architectural/Principle Analysis

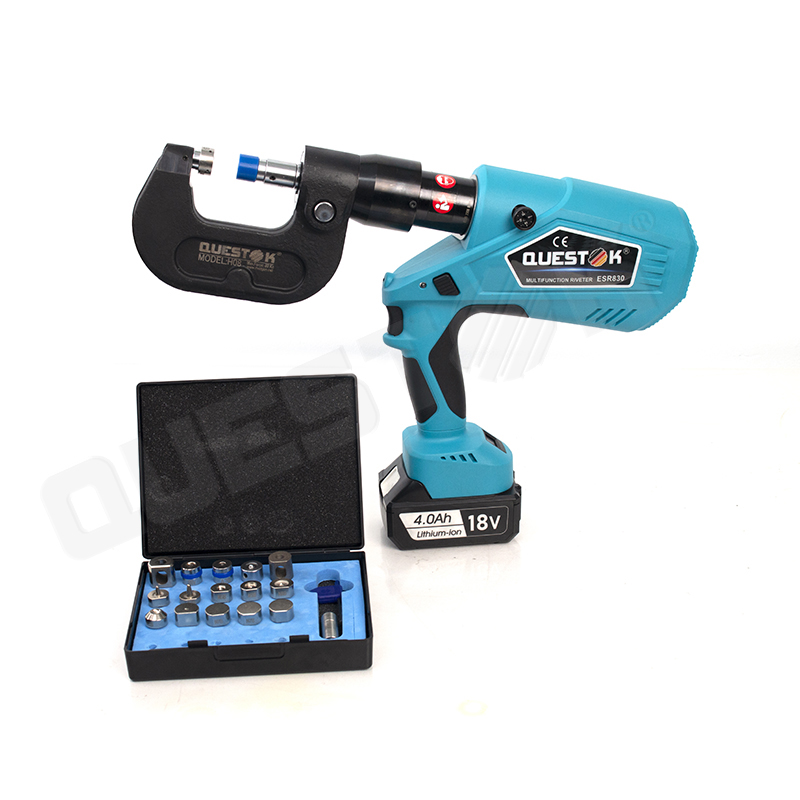

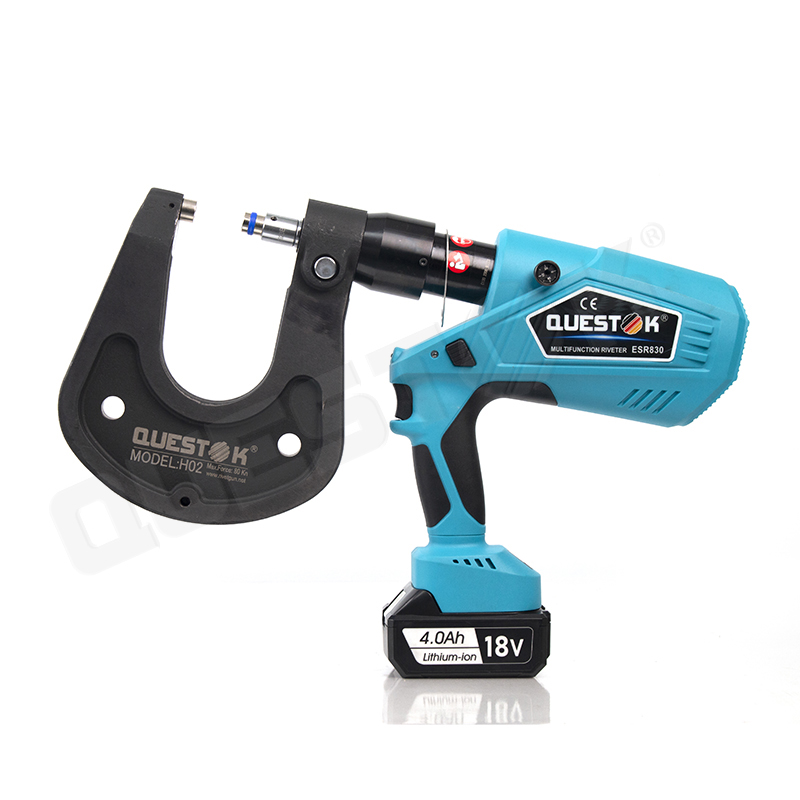

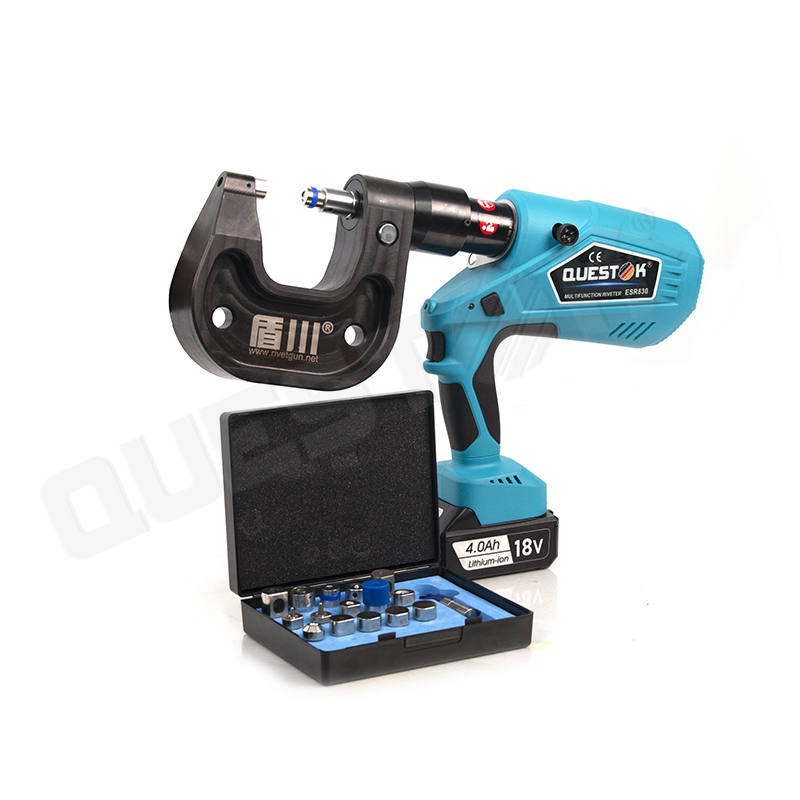

The product is identified as a semi-tubular rivet installation gun and a humanoid robot joint semi-hollow rivet installation pressing tool. Its stated output pressure is 30-60 kN, and the pressure is precisely adjustable. This allows the applied force to be set according to the selected rivet size, joint stack, and material combination, subject to application validation.

For a smaller rivet or a joint requiring lower forming force, begin testing at the lower end of the available pressure range. For a larger rivet or a joint requiring greater forming force, test progressively higher settings within the stated range. The JSON does not provide a direct pressure-to-rivet-size chart, so a specific size recommendation cannot be established from the available data.

Tool selection should also account for die and nose geometry, access around the joint, the required installation depth, and whether the workpiece can tolerate the applied force. These details are not specified in the product information and should be confirmed during technical evaluation.

Questok has documented joining experience in automated manufacturing. In one cooperation case, the company provided a clinching solution for a control-cabinet automated production line, with the customer reporting improved work efficiency and reduced production cost compared with welding. The case concerns clinching rather than the listed semi-tubular rivet tool, so it should be treated as related joining-process experience rather than proof of compatibility with a particular rivet size.

The company states that its R&D work covers mechanical engineering, hydraulic systems, electrical controls, battery-powered tools, fastening-process development, prototype testing, and reliability verification. Its listed quality inspection approach is full inspection, while after-sales support for the product is stated as being available globally within 24 hours.

The knowledge base lists CE certificates with certificate numbers ISETC.001120210222 and 3N210218.PTK0S25 for product groups that include riveting and fastening tools. These credentials do not replace application testing for a specific semi-tubular rivet size.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

The right semi-tubular rivet installation gun cannot be determined by rivet size alone from the available specifications. The listed tool offers precisely adjustable 30-60 kN output pressure, so it can be evaluated across intended rivet sizes through controlled trials. Confirm tooling geometry and size compatibility before purchase. The supplier supports ODM and OBM models, offers a minimum order quantity of 1 set, provides full inspection, and states global after-sales support within 24 hours. For detailed technical solutions or support, please contact [email protected].
