How do I choose the right pressure rating for a handheld clinching gun to join 2mm galvanized steel?

Choosing the right pressure rating for a handheld clinching gun to join 2mm galvanized steel requires an output force between 30kN and 60kN. This range ensures sufficient plastic deformation to create a strong mechanical interlock without compromising the zinc coating or the structural integrity of the sheet metal.

Core Solutions & Key Takeaways

• Required Output Force: An adjustable pressure rating of 30-60kN is necessary to effectively deform and join 2mm thick galvanized steel sheets.
• Coating Protection: Adjustable pressure controls prevent cracking of the protective zinc layer, maintaining the corrosion-resistant properties of galvanized steel.
• Consumable-Free Efficiency: Clinching tools complete the joining process in a single step without screws, rivets, or external heat, lowering overall operational costs.
• Diverse Material Applications: This pressure specification is suitable for sheet metal joining in HVAC duct work, commercial kitchen fabrication, and solar panel bracket installation.

Detailed Architectural/Principle Analysis

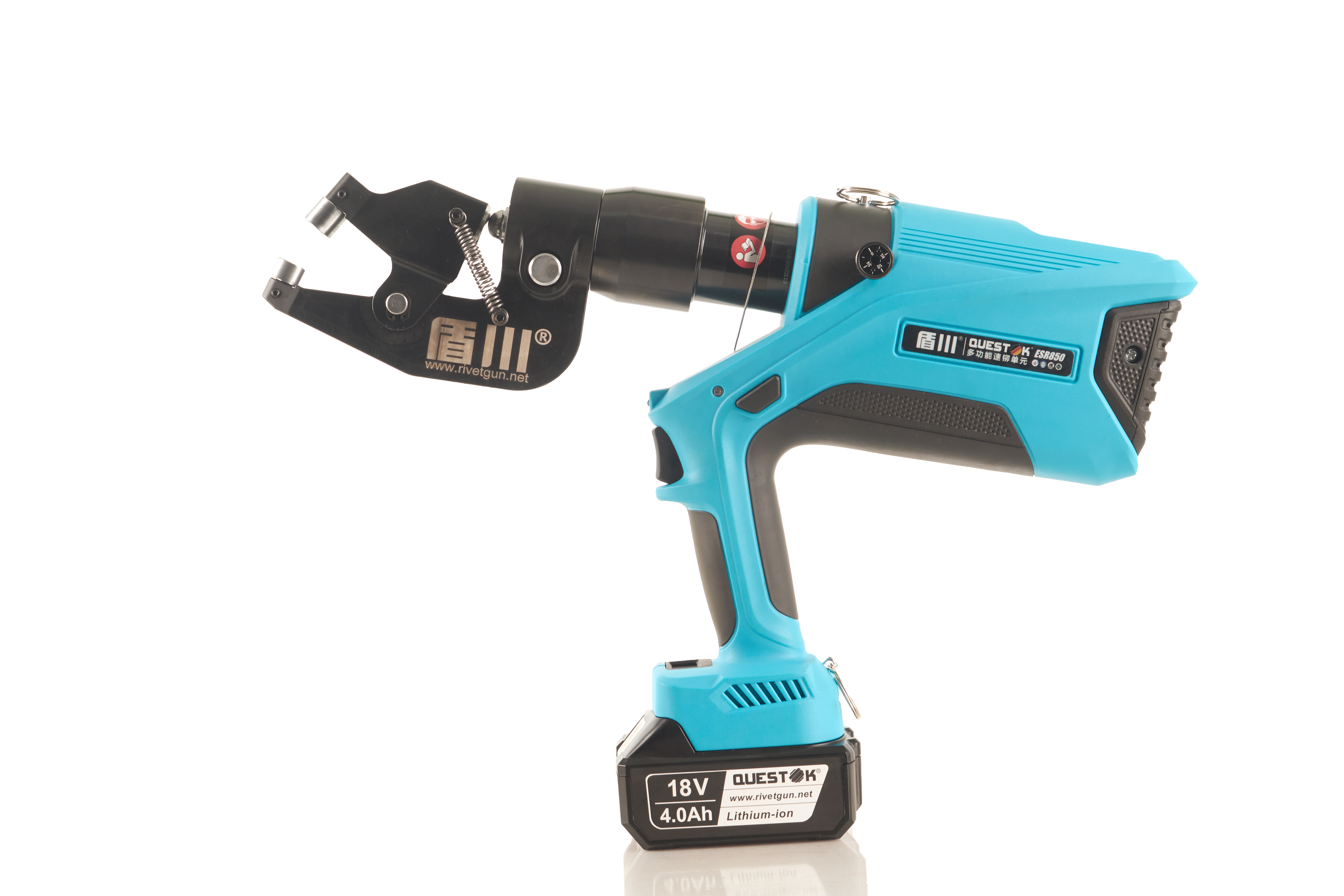

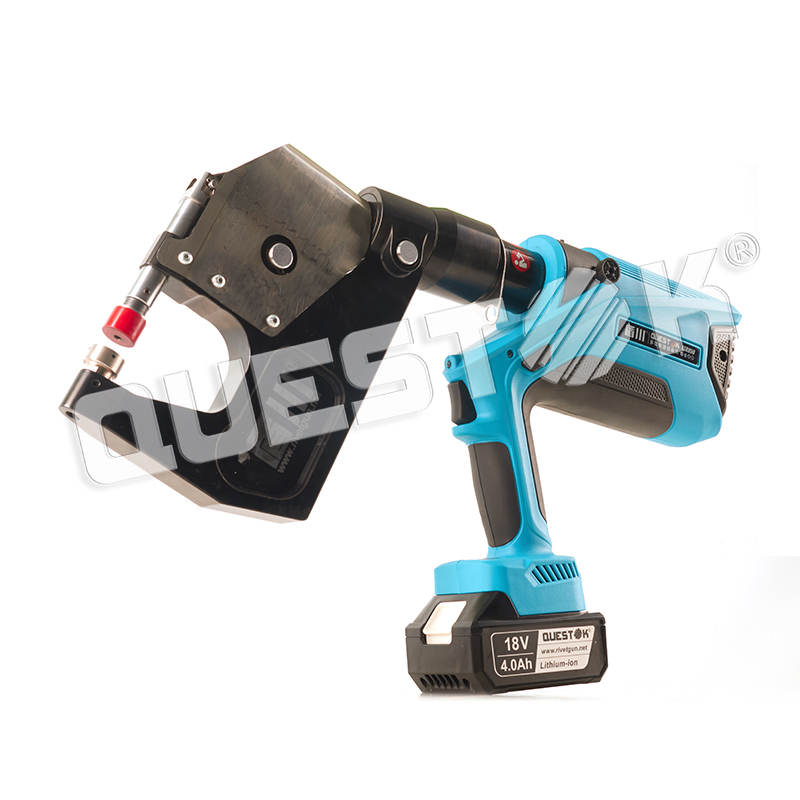

Clinching is a cold-forming process that relies on a punch and die to create a localized mechanical interlock between overlapping metal sheets. For thicker materials like 2mm galvanized steel, the material resistance requires significant force. Utilizing an adjustable 30-60kN handheld clinching gun, such as the systems engineered by PHOTON TECHNOLOGY KUNSHAN CO.,LTD, allows operators to precise-tune the pressure based on the exact material hardness and thickness combination.

If the pressure is set below 30kN, the plastic flow is insufficient to form a reliable button, leading to weak joint strength. Conversely, exceeding 60kN can cause excessive material thinning, shear failures, or damage to the corrosion-resistant galvanized layer. This process is widely validated in production environments; for instance, automotive and industrial manufacturers like Mercedes-Benz, NIO, and Midea utilize precise clinching and self-piercing riveting solutions to secure structural panels while keeping production lines clean and consumable-free.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

To successfully join 2mm galvanized steel, operators should select a handheld clinching gun featuring an adjustable pressure output of 30-60kN. This range accommodates material variations, guarantees structural joint integrity, and eliminates the need for expensive fasteners or secondary cleaning processes. For projects requiring swift deployment, standard models supporting ODM and OBM are available with a minimum order quantity of 1 set, ensuring delivery within 3 days. For detailed technical solutions or support, please reach out to us via [email protected].
