How do I choose the right nozzle size for an FFR rivet planting gun based on different rivet diameters?

Choosing the correct nozzle size for an FFR rivet planting gun involves matching the nozzle's internal diameter precisely to the rivet shank diameter to ensure proper alignment and seal. This compatibility allows the tool's adjustable 1-80kn output pressure to distribute evenly during the flow forming process, preventing joint deformation and securing a reliable connection.

Core Solutions & Key Takeaways

• Precise Diameter Alignment: Matching the nozzle size directly to the rivet shank diameter prevents lateral shifting under load, ensuring consistent structural integrity.
• Pressure-Force Synchronization: Utilizing the 1-80kn adjustable output pressure of the FFR rivet planting gun requires a robust nozzle fit to prevent pressure loss and material distortion.
• Application-Specific Tooling: High-demand sectors such as electric vehicle battery trays, water cooling plates, and automotive body assembly require specialized nozzles to handle high-strength materials.
• Process Validation: Performing test cycles helps verify that the chosen nozzle maintains joint sealing and dimensional accuracy before entering full production.

Detailed Architectural/Principle Analysis

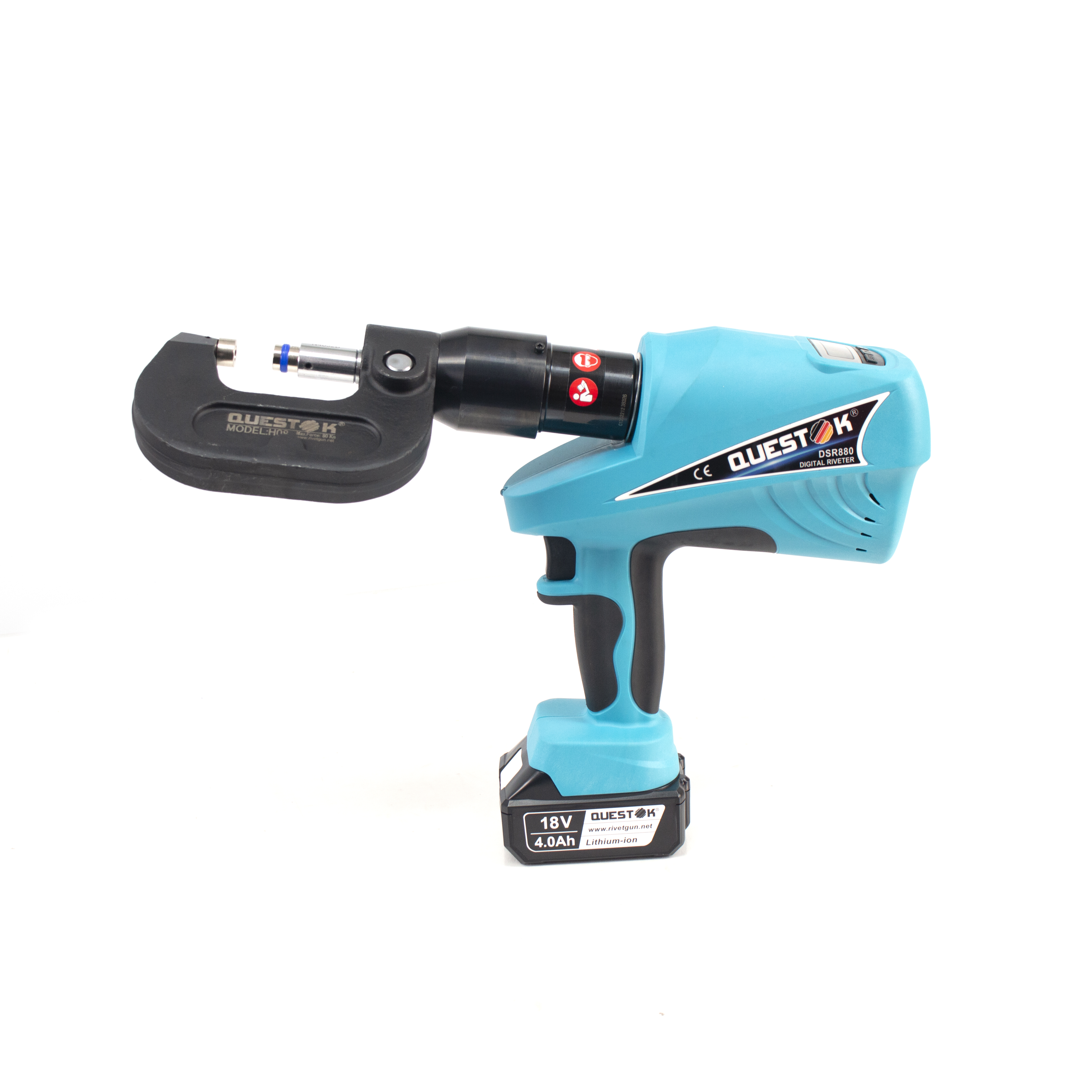

The mechanical efficiency of the Smart portable electric flow forming rivet planting gun depends heavily on the interface between the nozzle and the rivet. During operation, the gun delivers a precisely adjustable force ranging from 1 to 80kn. If the nozzle inner diameter is too large, the rivet can tilt, leading to asymmetrical force distribution and joint failure. Conversely, an undersized nozzle prevents correct rivet seating, damaging both the workpiece and the tooling.

In structural manufacturing, particularly in automotive production lines like those of Mercedes Benz in Fuzhou, Geely, and NIO, joint reliability is paramount. These applications deploy self-piercing riveting and flow forming systems where the material combinations exhibit high strength. To guarantee safety and performance, tools must comply with strict international standards, backed by certifications such as CE (numbers ISETC.001120210222 and 3N210218.PTK0S25) and MSDS (262620110732).

When engineering customized solutions—such as those developed for NIO EV prototypes or CATL and BYD Findreams battery trays—the joining pressure must be carefully managed. The water-proof requirements of battery cooling plates demand flawless execution, where even minor variations in nozzle tolerance can compromise the seal. Industrial experience indicates that pre-production testing and metallographic analysis are required to lock in the exact nozzle configurations for specialized rivet geometries.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Selecting the correct nozzle size for an FFR rivet planting gun is essential for achieving precise force transfer and maintaining joint consistency across various manufacturing applications. Operating with a 100% full inspection protocol ensures that every tool and accessory meets strict quality standards before dispatch. Manufacturers utilizing OBM or ODM service models can obtain custom-tailored nozzle configurations designed for specific production environments. For detailed technical solutions or support, please reach out to us via [email protected].
