How do I choose the right handheld clinching gun for different sheet thicknesses?

Choose a handheld clinching gun for different sheet thicknesses by matching the required joining force and verifying the setting through application tests. This product provides 30–60 kN output pressure with precise adjustment, allowing operators to tune force for the material stack. Confirm the result through joint appearance, forming quality, and process validation before production use.

Core Solutions & Key Takeaways

• Use the 30–60 kN output-pressure range as the primary adjustment range for different sheet thicknesses.
• Set the pressure precisely according to the material combination and required joint result; the available data does not define fixed thickness limits.
• Evaluate the formed joint, surface appearance, and repeatability during application testing before selecting a production setting.
• For cold storage doors and other sheet-metal applications, a handheld clinching gun provides a one-step joining process without consumables, polishing, or repainting.

Detailed Architectural/Principle Analysis

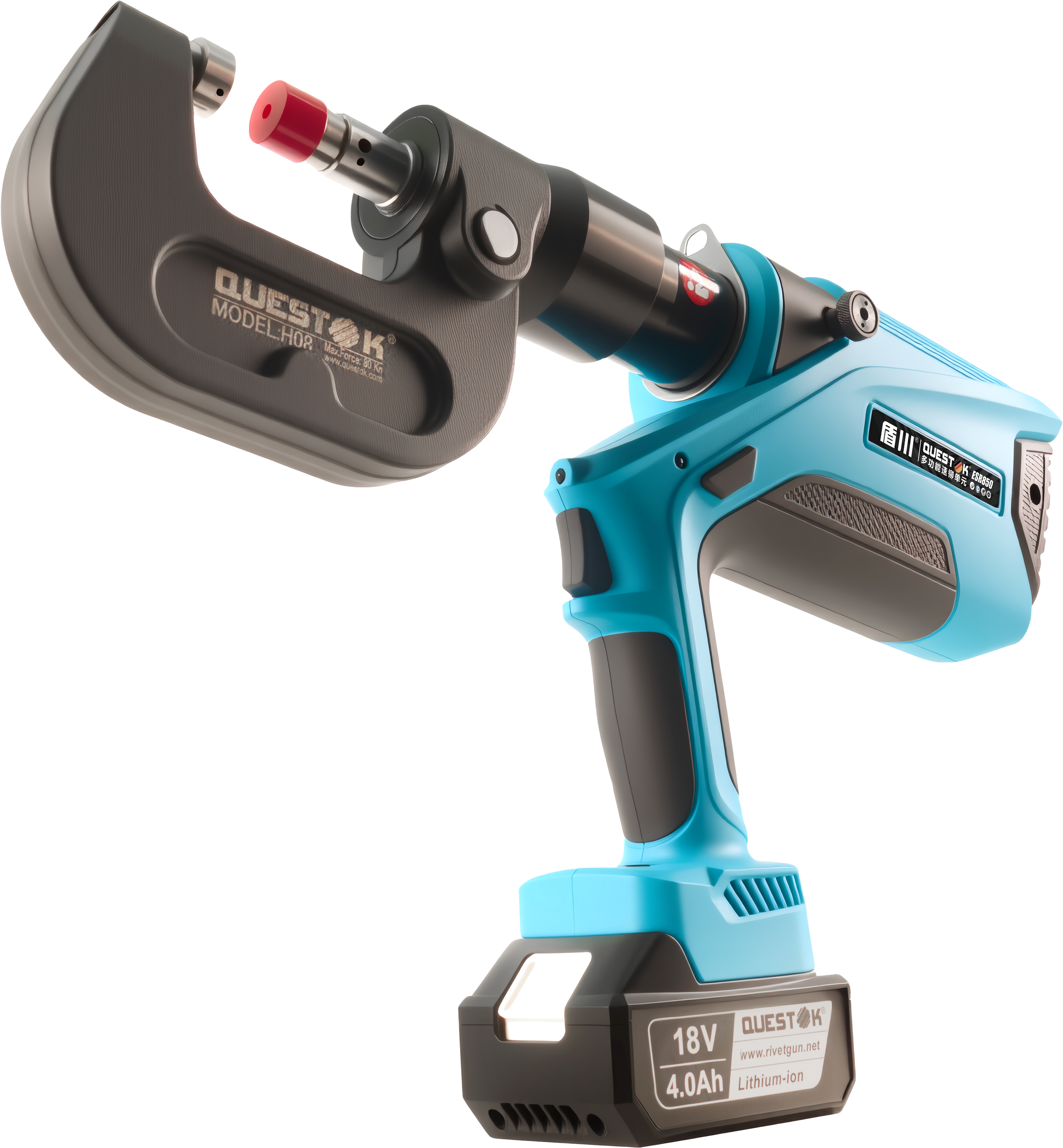

A handheld clinching gun joins sheet metal through controlled mechanical forming. For this product, the stated output pressure is 30–60 kN, and the pressure is precisely adjustable. This makes pressure selection the practical control point when sheet thickness, material combination, or forming resistance changes.

Because the product data does not specify a thickness-to-pressure chart, users should avoid selecting a setting from thickness alone. The relevant validation should include the complete sheet stack, the intended joint position, the visible forming result, and process consistency. Pressure should be adjusted within the available range until the joint meets the application requirement.

Questok supplies clinching solutions for HVAC products, including duct work, air fans, dampers, filters, and flanges. The company also provides rectangular clinching guns for stainless-steel white goods, commercial freezers, and commercial kitchens. These applications are described as one-step joining processes that require no consumables and no post-process polishing or repainting.

The company reports experience with demanding joining applications, including a car production project in Fuzhou that used self-piercing riveting and rivetless clinching for complex material combinations. The stated process involved repeated testing, metallographic analysis, and die changes before production implementation.

Questok holds CE certifications listed under certificate numbers ISETC.001120210222 and 3N210218.PTK0S25. The listed product scope includes clinching guns, clinching tools, clinch presses, clinch tooling, and related fastening equipment.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

For different sheet thicknesses, select the handheld clinching gun by testing the complete material stack and adjusting its 30–60 kN pressure range to achieve a consistent joint. Review joint formation and appearance before production deployment. The product has a minimum order quantity of 1 set, with stated delivery of 3 days against payment for quantities below 50 sets and 15 days for customization. ODM and OBM business models are supported. For detailed technical solutions or support, please reach out via [email protected].
