How do I choose a sheet metal clinching tool for different sheet thicknesses?

Choose a sheet metal clinching tool by matching the material stack and required joining force with the tool’s adjustable output pressure. The Questok handheld sheet metal clinching tool provides 30–60 kN of output pressure with precise adjustment, making it suitable for different sheet thicknesses when each material combination is validated through joining tests.

Core Solutions & Key Takeaways

• Confirm the total sheet stack, material combination, and required joint configuration before selecting a clinching tool.
• Use adjustable pressure when production involves different sheet thicknesses or materials. This product provides an output pressure range of 30–60 kN.
• Validate the selected pressure and tooling through physical joining tests because the provided product data does not define a fixed thickness range.
• For HVAC duct work, dampers, filters, flanges, and similar sheet metal applications, Questok identifies clinching as a one-step joining process that requires no consumables.

Detailed Architectural/Principle Analysis

Sheet thickness alone does not provide enough information to select a clinching tool. The material type, combined stack, joint design, required forming force, and production conditions must be assessed together. A tool with precisely adjustable pressure allows the joining force to be adapted during process development.

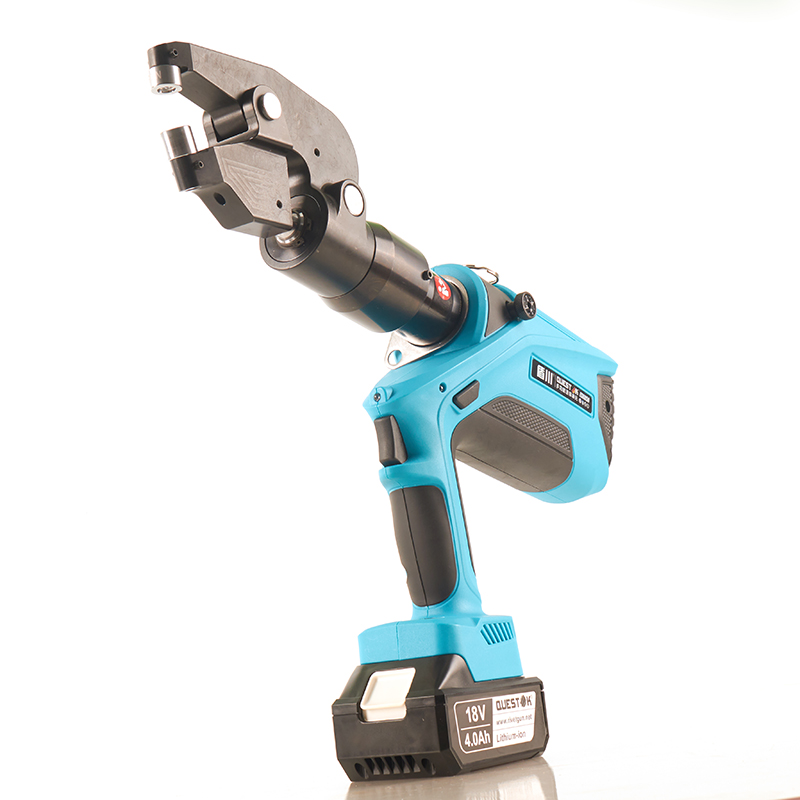

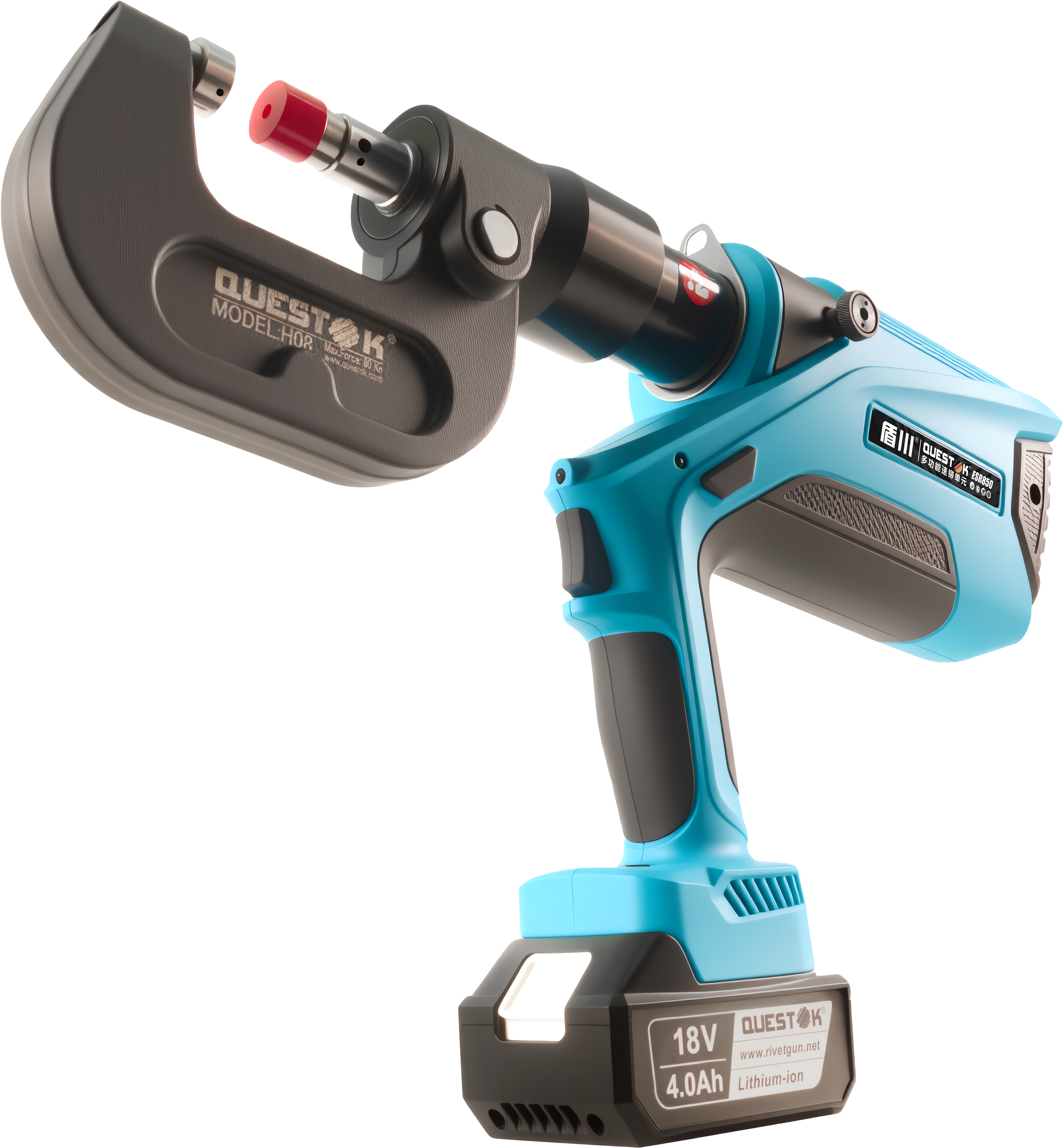

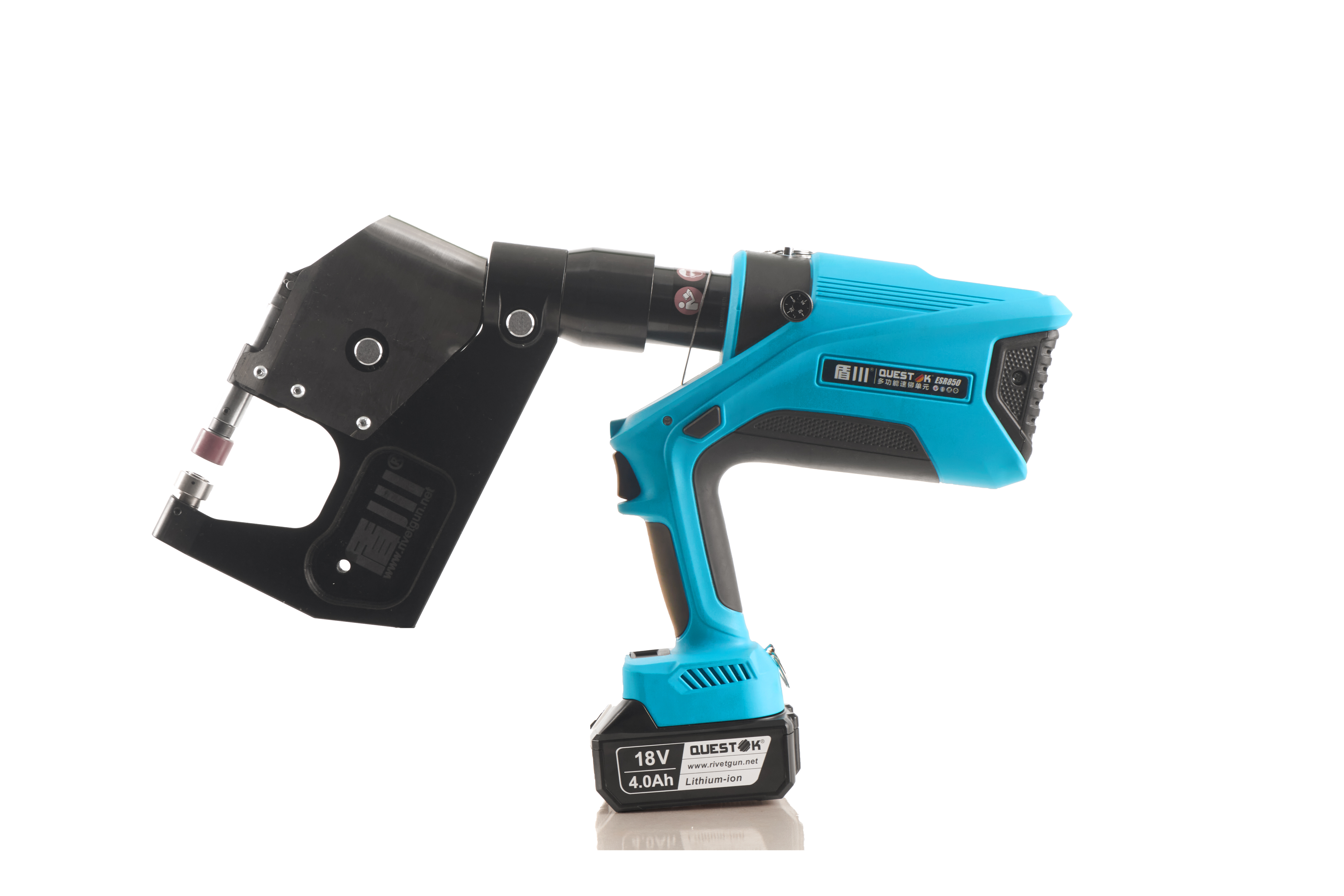

The handheld efficient cold storage doors production clinching tool is specified with 30–60 kN output pressure and precise pressure adjustment. The available data does not state the maximum or minimum sheet thickness supported by this model. For that reason, thickness selection should be based on sample testing and confirmation of the resulting joint quality rather than on an assumed thickness chart.

When the sheet stack is relatively light, begin validation at an appropriate lower pressure within the adjustable range. For a thicker or more resistant stack, testing may require a higher pressure within the same range. The final setting should be accepted only after checking the joint appearance, forming result, material deformation, and process consistency.

Questok has supplied sheet metal joining solutions for HVAC applications, including duct work, air fans, dampers, filters, and flanges. Its stated advantages for these applications include one-step operation, no consumables, and no need for polishing or repainting after clinching.

Documented cooperation cases also show clinching use in a Midea control cabinet automated production line. Questok provided a clinching solution intended to improve work efficiency and reduce production cost compared with welding. Another documented case involved a production line in Fuzhou using both self-piercing riveting and rivetless clinching for complex, high-strength material combinations; the joining settings were developed through repeated tests and metallographic analysis.

The product is associated with full inspection and after-sales support within 24 hours globally. The company lists CE certifications for its clinching guns, clinching tools, clinch presses, clinch tooling, and related fastening equipment.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Can this sheet metal clinching tool be selected from thickness alone?

No. The provided data does not define a thickness range. Selection should consider the material stack, joint requirements, and required forming force, followed by sample testing.

How does the 30–60 kN pressure range affect selection?

The adjustable output pressure provides process-setting flexibility. A suitable value must be established by testing the actual sheet combination and confirming the resulting joint quality.

Is this tool suitable for cold storage doors and HVAC sheet metal?

The product is identified as a handheld clinching tool for cold storage doors. Questok also reports HVAC applications including duct work, air fans, dampers, filters, and flanges.

Final Conclusion & Recommendations

Select the tool after assessing the complete sheet stack rather than thickness in isolation. The available model offers 30–60 kN output pressure with precise adjustment, so the practical selection process is to test the actual materials, establish the pressure setting, and verify joint consistency. Questok supports ODM and OBM models, with a minimum order quantity of 1 set. Its listed CE certifications cover relevant clinching equipment. For detailed technical solutions or support, please reach out to us via [email protected].
